The Job Demands Precision. You Demand Performance. The New ALH Series Delivers. Accurate. Reliable. Performance.

For the professional who demands fast and accurate leveling.

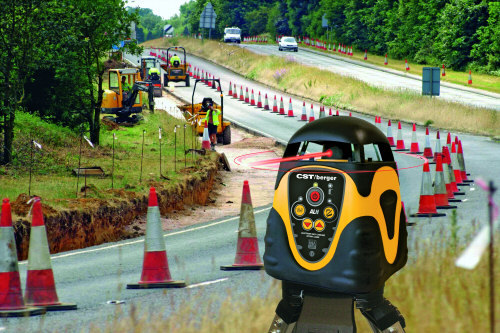

Single-slope capable with electronic cross-axis leveling makes the ALH ideal for exterior applications such as grading and excavating, concrete forms, machine control, site prep, marking elevation, landscaping, driveway paving.

Features:

 Exceptionally high accuracy
 Exceptionally long range
 Manual slope capability of ± 10% using keypad
 Robust and waterproof
 Cross-axis levelling

Applications:

For all work in civil engineering e.g. depth control when excavating, foundations, walls, elevation marking, grading, gardening and landscaping

Professional LD440 universal laser detector for rotary laser levels for all applications  Seven-channel height display indicates the position of the LD440 in relation to the plane of laser light  Three levels of speaker volume with 3 distinct tones  Concise keypad with on and off button  Sensitivity button and speaker volume button  Rubber reinforcement to protect against impact  Waterproof seal (IP 67)  Automatic shutdown after 5–8 minutes  Direction memory (displays the side on which the laser light has left the laser reception range)  Electronic fi lter for suppressing direct sunlight and for protecting against interference from electromagnetic radiation  Very sturdy rod clamp with quick release mechanism  Additional magnets for mounting on a drywall and on the ceiling  Very clearly visible LED diodes with bright blue light  Dual-sided LCD display with full function overview and graphical display: power on/off indicator, battery charge monitoring, accuracy setting, speaker volume

technical data	CST/berger ALH
Range	up to 850 m Diameter with laser receiver
Self leveling accuracy	± 1.5 mm at 30 m (±1/16" at 100 ft) (0.08mm/m)
Automatic self levelling laser	horizontal
Self levelling range	± 5°
Rotation speed	600 rpm
Scanning angle	n/a
Wall mount bracket	n/a
Laser Diode	650nm
Battery types	rechargeable battery pack (NiMH)
Protection class	IP 67, All Weather
Warranty	3 Years

your shipment will include:

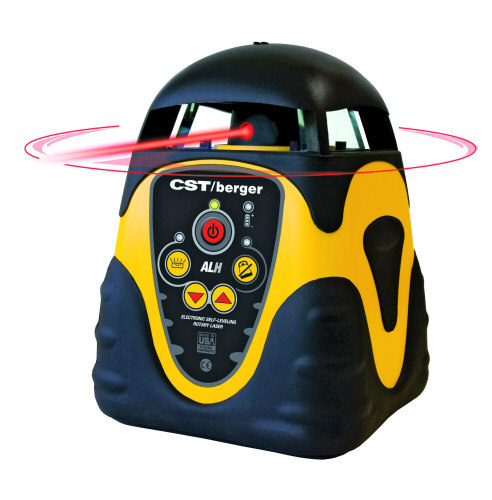

 1 no. CST/berger 57-ALH Horizontal Rotating Laser
 1 no. LD440 Laser Receiver & Bracket
 1 no. NiMH Battery Pack & Charger
 1 no. Protective Hard Case
 1 no. 36 Month Warranty
