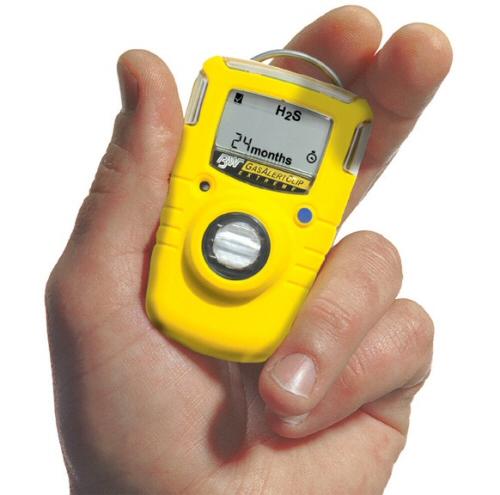

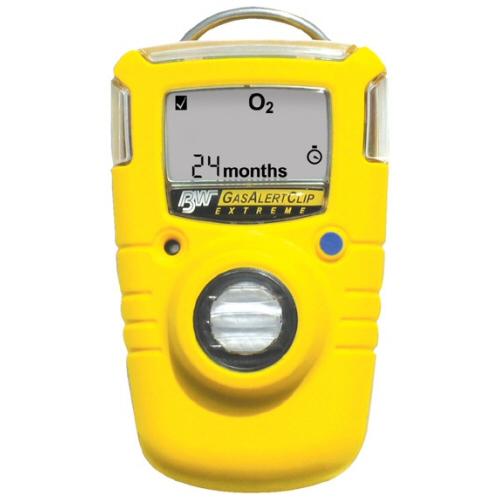

BW GAS ALERT CLIP EXTREME
single gas monitor |
| H²S, SO², CO or O² |
| 2 Year Disposable Gas Detector |
BW Technologies has raised the bar for maintenance-free detection with the new GasAlertClip Extreme.
Providing two years of protection from H²S, SO², CO or O², the water-resistant GasAlertClip Extreme has a built-in concussion-proof boot and is ideal for amphibious operations and high-moisture environments.
Main Features:
Simply press the start/test button and the GasAlertClip Extreme is ready to use.
This single gas detector requires no calibration, sensor replacement, battery replacement or battery charging . Rugged and durable with built-in concussion-proof boot, the GasAlertClip Extreme’s LCD displays life remainin in months, days and hours .
Equipped with two alarm levels and an internal vibrator, the GasAlertClip Extreme now features four visual LEDs, and a high-output audible alarm.. The large, alphanumeric display provides instant notification of gas alarms, test status, life remaining (months then days then hours) and peak (maximum) exposures encountered.
The GasAlertClip Extreme`s advanced microprocessor performs a full function self-test automatically on startup and on demand to verify sensor, circuit and battery integrity, as well as audible/visual alarm operation.
Generating a permanent record of gas alarm events has never been easier. The GasAlertClip Extreme allows for effortless transmission of stored event data to a cordless printer or a PC for review and analysis.
Despite being loaded with features, the GasAlertClip Extreme is compact and light, which makes it comfortable to wear. Clip it to your lapel, pocket, belt or hardhat for unequalled protection.
Protect Yourself:
 Two years of protection with zero maintenance costs
Continuous, alphanumeric, status LCD shows detector life remaining, alarm setpoints
and advises self-test status
Rugged, IP-66/67 highly water-resistant design
Built-in concussion-proof boot
Records and displays the peak alarm encountered and the time elapsed since the
exposure occurred
Automated self-test with BW’s MicroDock II system
Automatic event logging records 10 most recent alarm events that can be downloaded
via built-in IR COM port to a printer, computer or MicroDock II docking station module
Two alarm levels (Low / High)
Provides typical 95 dB tone and bright, quad-LED indication on alarm
Internal vibrator alarm
Compact (1.1 x 2.0 x 3.2 in. / 28 x 50 x 81 mm) and lightweight (2.7 oz. / 76 g)
Maintenance free—no sensor or battery replacement, no calibration, no downtime
Full-function self-test of audible/visual alarms, plus integrity of sensor, battery and
circuitry
Continuously ON—one-button activation, test and data transmission
Comes complete with rugged, stainless-steel alligator belt clip and test cap
Instructions in local languages included
|
Gas monitored
|
H²S
|
CO
|
SO²
|
O²
|
|
Sensor range
|
0-100 ppm
|
0-300 ppm
|
0-100 ppm
|
0-30.0 % by vol.
|
|
Low alarm level
|
10 ppm
|
35 ppm30 ppm (UK/EU)
|
5 ppm
|
19.5%
|
|
High alarm level
|
15 ppm
|
200 ppm
|
10 ppm
|
23.5%
|
|
Operating temperature
|
-40 to +122oF -40 to +50oC
|
-22 to +122oF -30 to +50oC
|
-22 to +122oF -30 to +50oC
|
-4 to +122oF -20 to +50oC
|
|
Calibration
|
Not required
|
Self-calibrating
|
Technical Specifications:
General Specifications
|
| Construction |
Rugged composite material with integral concussion-proof boot |
| Humidity |
5% to 95% RH (non-condensing) |
| EMI/RFI |
Complies with EMC Directive 89/336/EEC |
| Ingress protection |
IP 66/67 |
| Battery |
Lithium, non-replaceable |
| Continuously on |
Yes |
| One-button control |
Activation, self-test and alarm event data transmission |
| Full functional self-test |
Verifies integrity of sensor, circuitry, battery and audible/visual alarms |
| Sensor |
Electrochemical cell (temperature compensated) |
| Operational life |
Two years |
Indicators & Alarms
|
| Visual alarm |
Flashing, wide-angled alarm lens with red quad-LEDs, plus flashing ALARM icon |
| Audible alarm |
Pulsing, high-output siren at 95 dB (typical) at 1 ft. (0.3 m) |
| Vibrator alarm |
Internal |
| Failure alarm |
Yes (audible/visual/vibration) |
| Self-test pass |
Yes (audible/visual/vibration) |
| Other |
End of life (audible/visual/vibration) |
| Display |
| Life remaining |
Continuously displayed in months, then days, then hours |
| Two alarm levels |
LOW alarm / HIGH alarm |
| Peak alarm exposure |
Records and displays peak alarm exposure, and time elapsed (up to 24 hrs.) |
| Alarm setpoints |
High and low (displayed on demand in ppm or %) |
| Self-test status |
Advises to “TEST” and that self-test was passed |
| Tests |
| Full function self-test |
On activation and on demand |
| Battery |
Every two hours (auto) |
|
Event Logging
|
| Memory |
Records and transmits up to 10 gas alarm events |
| Event information |
Gas type, peak exposure level (ppm or %); alarm duration in minutes and seconds;
time elapsed since the alarm occurred in days, hours and minutes, life remaining, self-tests, cumulative alarm time |
| Transmission method |
Via infrared port to infrared printer or to USB PC adapter |
| Dimensions |
| Size |
1.1x2.0x3.2inches / 28x50x81mm |
| Weight |
2.7oz./76g |
| Warranty |
| Terms |
2 years from activation, plus 1-year shelf life |
your shipment will include:
 1 no. BW GasAlertClip Extreme
1 no. Calibration Cap
1 no. Instruction Sheet
1 no. Calibration Certificate
1 no. 24 Month Warranty
1 no. Comprehensive BW Dealer Technical Advice & Support
|
