Leica Disto D2 Laser Tape - Worlds Smallest Laser Tape

D2 Laser Tape - Worlds Smallest Laser Tape

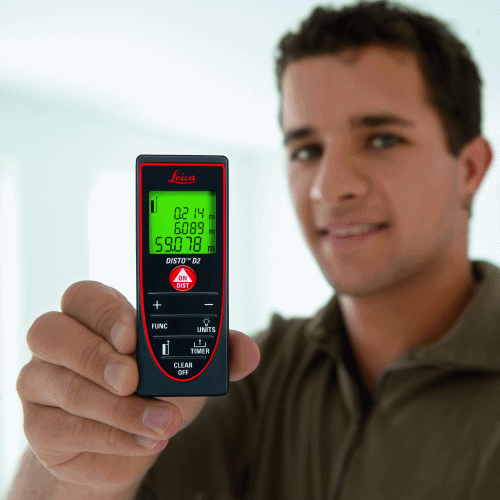

Small and handy
Thanks to its ergonomic and compact design with soft grip the Leica DISTO D2 sits securely in your hand and fits into any pocket.

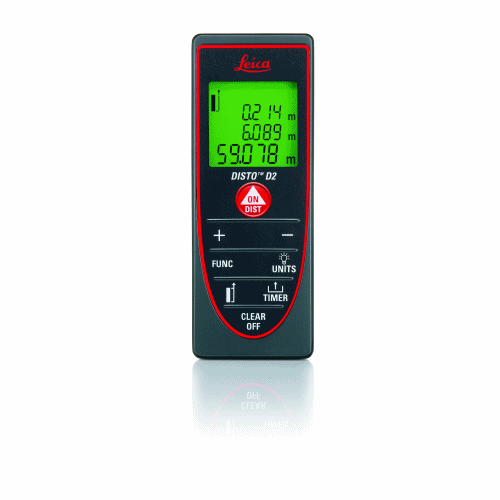

Clear display
The results are shown on a 3-line display. The illuminated display is easily readable even in the dark.

Simply clever
Minimum / maximum measurements, tracking and storage of results make your measuring tasks even simpler.


The smallest laser meter in the World!

The Leica DISTO D2 is the lastest model available in the Disto family of laser tapes.  As small as a mobile phone this new tool will prove an ideal solution to any entry level user.

The compact and handy base model was specifically designed for indoor applications. Shortcut keys for addition, subtraction, area and volume calculation make measuring fast and very reliable. The last 10 measurements are also stored. As with all Leica laser distance meters, the laser dot is clearly visible. You can always see your targeting point, even if the target object is in a hard to access area. Leica DISTO™ D2 – you will never use a measuring tape again!




Demonstration & feature video
Click the image to the right to view our online video outlining the many features and benifits of the Leica DISTO D2.


Quick and easy
Measure distances at the touch of a button and calculate areas or volumes.

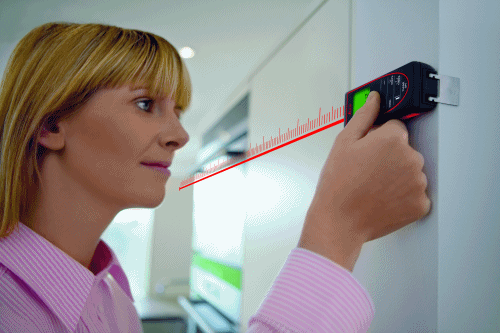

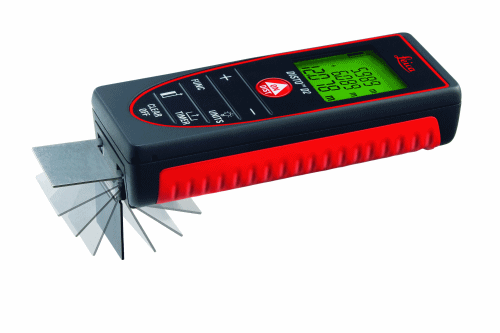

Measure from edges or corners
With the flip-out end-piece you are equipped for any measuring situation. (please note that this does not auto detect its position as with the DISTO D3)


      Interior   Exterior
Functions DXT D2 D3a D3a BT
D5 D8
Smart Horizontal Mode™
Min / max measurement
Continuous measurement
Addition / subtraction
Area / volume measurements
Pythagoras functions
Room dimensions
Horizontal distance
Trapezium measurements
Indirect measurements
using tilt sensor

Line Levelling
 Technical Data  DXT  D2  D3a  D3a BT  D5  D8
Typical measuring accuracy ± 1.5 mm ± 1.5 mm ± 1.0 mm ± 1.0 mm ± 1.0 mm ± 1.0 mm
Range 0.05
– 70 m
0.05
– 60 m
0.05
– 100 m
0.05
– 100 m
0.05
–200 m
0.05
–200 m
 Measuring units m, ft, in m, ft, in, yd
 Power Range Technology™
 Distance in m
Ø of the laser dot in mm
10, 50, 100 m
6, 30, 60 mm
10, 50, 100 m
6, 30, 60 mm
Tilt sensor
Measuring range
Accuracy to the laser beam
Accuracy to the housing

± 45°
± 0.3°
± 0.3°

± 45°
± 0.3°
± 0.3°

360°
± 0.1°
± 0.1°
Units in the tilt sensor     0.0°, 0.0%  0.0°, 0.00%
mm/m, in/ft
4-fold digital viewfinder
Store constant values         1 1
Memory recall 10 10 20 20 20 30
Time delay release (timer)
Display illumination
Free software
Data interface       Bluetooth
(Class 2)
  Bluetooth
(Class 2)
Measurements
per set of batteries
up to
5,000
up to
5,000
up to
5,000
up to
5,000
up to
5,000
up to
5,000
Multifunctional end-piece automatic manual automatic automatic automatic automatic
Tripod thread
Batteries AAA 2×1.5 AA 2×1.5
Protection class IP 65 IP 54  IP 54
Dimensions 122×55
×28 mm
111× 42
× 23 mm
127×49×27.3 mm 143.5×55×30 mm
Weigh with batteries 159g 90g 149g 150g 195g 205g

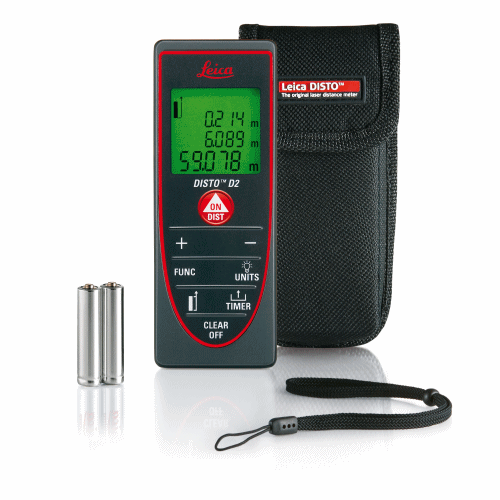

your shipment will include:
 1 no. Leica DISTO D2 (In Stock)
 1 no. Protective Holster
 1 no. Wrist Strap
 2 no. AAA Batteries
 1 no. Instruction Sheet
  1 no. 36 Month Warranty
  1 no. 30 Day Money Back Guarantee
  1 no. Comprehensive Leica Dealer Technical Advice & Support
  1 no: FREE Next Working Day Delivery





RRP:  £129.00
OUR PRICE (ex. vat):  £102.00
Free Next Day Delivery (UK)
Download product information
