Smart Horizontal Mode Measure accurate horizontal distances without the need to hold the unit level.
Tilt Measurement Measure angles, pitches & inclinations with the Disto D3a's built in Tilt Sensor.
Multifunctional Endpiece Measure from edges or corners with the auto detect endpiece.

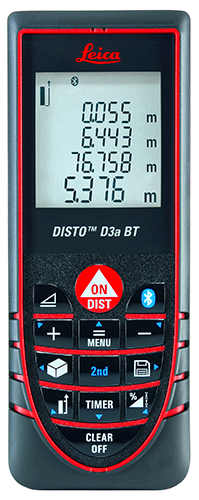

Leica DISTO™ D3a BT – The Leica distance meter with Bluetooth® Technology and Smart Horizontal Mode™.

The Leica DISTO™ D3a BT has all the characteristics of the Leica DISTO™ D3a such as “Smart Horizontal Mode™, tilt sensor, calculation possibilities for rectangular and triangular areas, volumes, room dimensions and various types of Pythagoras functions.

However the unit also includes error free data transfer via Bluetooth™.



Bluetooth™ Data Transfer

With integrated Bluetooth® Technology, measurement results can be wirelessly and accurately transferred to Pocket PCs and PCs. You can easily process your data in Excel®, Word®, AutoCAD® and other compatible programs. The AutoCAD® Plug-In offers a convenient drawing by using the AutoCAD® software.

The navigation keys of the Leica DISTO™ D3a BT provide a further advantage as the movements of the cursor on the PC can be controlled to navigate around the compatible software.



Smart Horizontal Mode™
In this mode, the Leica DISTO™ D3a BT measures a distance and a tilt. From these two values it automatically calculates the horizontal distance. The measuring precision is increased considerably in a very easy way with this function. Furthermore, it can be measured over persons and obstructions without any problems. This is a significant advantage when in crowded interiors and furnished buildings.

Despite this functionality, the Leica DISTO™ D3a BT is simple to operate and extremely easy to use. The robust design with IP54 protection keeps the instrument safe from dust and splash water.

Featured with

BLUETOOTH® - reliable data transfer
Leica DISTO™ transfer software and AutoCAD® plug-in
Smart Horizontal Mode™
Inclination measurement (± 45°)
Illuminated 4-line display
Multifunctional end-piece
Robust with IP 54


Leica DISTO™ D3a BT:
Scope of delivery
Leica DISTO™ D3a BT
Holster
Quickstart
Wrist strap
Battery pack
Target plate
Leica DISTO™ Transfer software

Smart Horizontal Mode™ Thanks to the combination of distance and tilt measurements you can determine the horizontal distance simply & precisely without the need to hold the unit level. You can take a measurement at an inclination of up to ± 45°, the Leica DISTO™ D3a will then automatically calculate the shortest horizontal distance allowing you to measure quickly and easily, even over the top of objects and people.

Room Angle Measurement The Leica DISTO™ D3a features a simple function for the measurement of angles of room corners. In three quick steps the angle of the returning wall is displayed to a resolution of 0.1°.

Tilt sensor Thanks to the in-built tilt sensor, you can quickly and simply measure tilts up to ± 45°. This allows the user to measure the angle of staircases, disabled access ramps and with the use of the timer even roof pitch’s. With the use of the laser you are also able to transfer angles giving you a virtual 100m inclinometer.

Multiple functions The Leica DISTO™ D3a can also calculate rectangular and triangular areas, volumes, room dimensions and various types of Pythagorean functions such as indirect height. A time delay release and enough memory for up to 20 measurements finish off the instruments wide range of functions.

Automatic Screen & Keypad Illumination An built-in sensor detects if the environment is dark and switches on the illumination of the keypad and display. You can also measure in the dark without any problem.

Multifunctional endpiece Aim the instrument straight at the target point, whether measuring out of corners, slots or from edges: with this endpiece you are prepared for all measuring situations. The instrument detects the endpiece automatically, which helps you avoid expensive measuring errors.

Power Range Technology™ The integrated Power Range Technology™ makes measuring long distances very easy. You can measure up to 80 m without a target plate and even up 100 m with a target plate, without having to take single step.

	Interior						Exterior
Functions	DXT	D2	D3a			D3a BT	D5			D8
Smart Horizontal Mode™			•			•
Min / max measurement	•	•	•			•	•			•
Continuous measurement	•	•	•			•	•			•
Addition / subtraction	•	•	•			•	•			•
Area / volume measurements	•	•	•			•	•			•
Pythagoras functions	•	•	•			•	•			•
Room dimensions	•		•			•	•			•
Horizontal distance							•			•
Trapezium measurements							•			•
Indirect measurements using tilt sensor										•
Line Levelling										•
Technical Data	DXT	D2	D3a			D3a BT	D5			D8
Typical measuring accuracy	± 1.5 mm	± 1.5 mm	± 1.0 mm			± 1.0 mm	± 1.0 mm			± 1.0 mm
Range	0.05 – 70 m	0.05 – 60 m	0.05 – 100 m			0.05 – 100 m	0.05 –200 m			0.05 –200 m
Measuring units	m, ft, in						m, ft, in, yd
Power Range Technology™			•			•	•			•
Distance in m Ø of the laser dot in mm	10, 50, 100 m 6, 30, 60 mm						10, 50, 100 m 6, 30, 60 mm
Tilt sensor Measuring range Accuracy to the laser beam Accuracy to the housing			± 45° ± 0.3° ± 0.3°				± 45° ± 0.3° ± 0.3°			360° ± 0.1° ± 0.1°
Units in the tilt sensor			0.0°, 0.0%				0.0°, 0.00% mm/m, in/ft
4-fold digital viewfinder							•			•
Store constant values							1			1
Memory recall	10	10	20			20	20			30
Time delay release (timer)		•	•			•	•			•
Display illumination	•	•	•			•	•			•
Free software						•				•
Data interface						Bluetooth (Class 2)				Bluetooth (Class 2)
Measurements per set of batteries	up to 5,000	up to 5,000	up to 5,000			up to 5,000	up to 5,000			up to 5,000
Multifunctional end-piece	automatic	manual	automatic			automatic	automatic			automatic
Tripod thread			•			•	•			•
Batteries	AAA 2×1.5						AA 2×1.5
Protection class	IP 65	IP 54					IP 54
Dimensions	122×55 ×28 mm	111× 42 × 23 mm	127×49×27.3 mm				143.5×55×30 mm
Weigh with batteries	159g	90g	149g			150g	195g			205g

your shipment will include:   1 no. Leica DISTO D3a (In Stock)   1 no. Protective Holster   1 no. Target Plate   1 no. Wrist Strap   2 no. AAA Batteries   1 no. Instruction Sheet   1 no. 36 Month Warranty   1 no. 30 Day Money Back Guarantee   1 no.  FREE Comprehensive Leica Dealer       Technical Advice & Support    1 no: FREE Next Working Day Delivery
