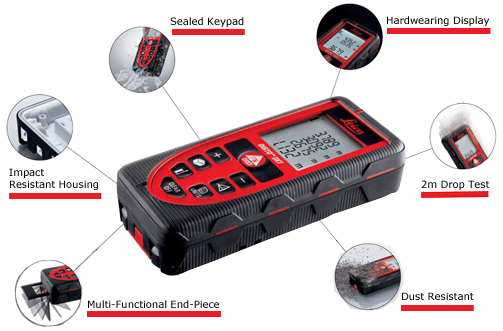

Dust-Proof & Jet Water Protected IP65 The housing and keypad are specially sealed against water and dust.
Robust The sensitive measuring elements are protected by solid rubber parts.
Multifunctional Endpiece Measure from edges or corners with the auto detect endpiece.

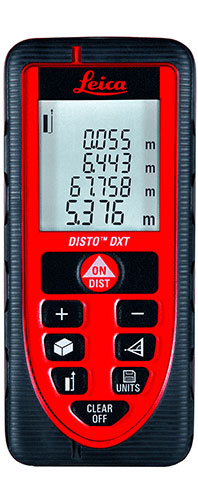

Leica DISTOTM DXT – Tough Enough!

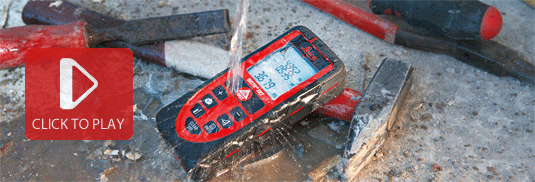

Many manufacturers talk about robustness, only few go to such lengths as Leica Geosystems: The Leica DISTO™ DXT is the only laser distance meter which is protected against jet water, completely sealed against dust (IP65 Certified) and dropped from a height up to 2m to demonstrate its robustness.

With its sealed and flat keypad, the device can be easily cleaned by holding it under running water. On the inside, it is strengthened with special fibreglass-reinforced plastic bracing. Thick rubber housing on the outside protects the module against possible damage in case it is dropped. These features make the Leica DISTO™ DXT the ideal measuring instrument for daily use on construction sites.

Another key feature is the proven multi-functional end piece with automatic position detection. Irrespective of whether measuring is carried out with the end piece in or out, the correct distance is automatically detected and displayed, avoiding tiresome measuring errors.



The Leica DISTO™ DXT has a number of other useful functions,  such as continuous measuring with display of minimum and maximum, as well as fast area and volume calculators with additional information for wall and floor area or perimeter. Keys for subtraction and addition, as well as a Pythagoras calculation for indirect measuring are all there too. A memory for the last ten measurements completes the functionality of the device, allowing you to take several measurements before entering them into your plan.

It goes without saying, that distances can be measured precisely to an accuracy of 1.5mm with the Leica DISTO™ DXT; true to the Leica Geosystems standard, "when it has to be right".

	Interior						Exterior
Functions	DXT	D2	D3a			D3a BT	D5			D8
Smart Horizontal Mode™			•			•
Min / max measurement	•	•	•			•	•			•
Continuous measurement	•	•	•			•	•			•
Addition / subtraction	•	•	•			•	•			•
Area / volume measurements	•	•	•			•	•			•
Pythagoras functions	•	•	•			•	•			•
Room dimensions	•		•			•	•			•
Horizontal distance							•			•
Trapezium measurements							•			•
Indirect measurements using tilt sensor										•
Line Levelling										•
Technical Data	DXT	D2	D3a			D3a BT	D5			D8
Typical measuring accuracy	± 1.5 mm	± 1.5 mm	± 1.0 mm			± 1.0 mm	± 1.0 mm			± 1.0 mm
Range	0.05 – 70 m	0.05 – 60 m	0.05 – 100 m			0.05 – 100 m	0.05 –200 m			0.05 –200 m
Measuring units	m, ft, in						m, ft, in, yd
Power Range Technology™			•			•	•			•
Distance in m Ø of the laser dot in mm	10, 50, 100 m 6, 30, 60 mm						10, 50, 100 m 6, 30, 60 mm
Tilt sensor Measuring range Accuracy to the laser beam Accuracy to the housing			± 45° ± 0.3° ± 0.3°				± 45° ± 0.3° ± 0.3°			360° ± 0.1° ± 0.1°
Units in the tilt sensor			0.0°, 0.0%				0.0°, 0.00% mm/m, in/ft
4-fold digital viewfinder							•			•
Store constant values							1			1
Memory recall	10	10	20			20	20			30
Time delay release (timer)		•	•			•	•			•
Display illumination	•	•	•			•	•			•
Free software						•				•
Data interface						Bluetooth (Class 2)				Bluetooth (Class 2)
Measurements per set of batteries	up to 5,000	up to 5,000	up to 5,000			up to 5,000	up to 5,000			up to 5,000
Multifunctional end-piece	automatic	manual	automatic			automatic	automatic			automatic
Tripod thread			•			•	•			•
Batteries	AAA 2×1.5						AA 2×1.5
Protection class	IP 65	IP 54					IP 54
Dimensions	122×55 ×28 mm	111× 42 × 23 mm	127×49×27.3 mm				143.5×55×30 mm
Weigh with batteries	159g	90g	149g			150g	195g			205g

your shipment will include:   1 no. Leica DISTO DXT (In Stock)   1 no. Protective Holster   1 no. Wrist Strap   2 no. AAA Batteries   1 no. Instruction Sheet   1 no. 36 Month Warranty   1 no. 30 Day Money Back Guarantee   1 no.  FREE Comprehensive Leica Dealer       Technical Advice & Support    1 no.  FREE LEICA BATTERY CHARGER   1 no: FREE Next Working Day Delivery
