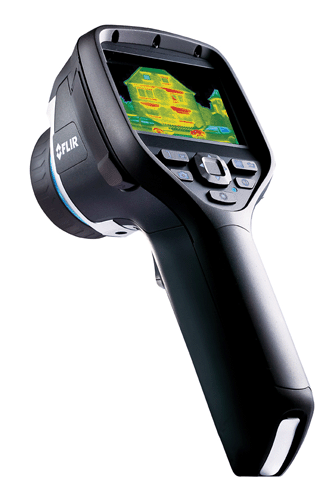

The New Flir E30bx infrared camera offers a 160x120 IR pixel resolution giving 19,200 temperature measurement points on each image.

The Flir E30bx thermal imaging camera includes many features that prove invaluable for building inspections. These include insulation alarms which can clearly show missing insulation and a dewpoint alarms which will show areas on your images where condensation is likely to occur leading to damp and mould problems.

Features:

	160x120 Resolution Great entry level resolution which will show enough detail for general purpose maintenance.			Thermal Sensitivity NETD 100mK - < 0.1°C
	WiFi Transfer images wirelesslt to your smartphone, iPhone, iPad or tablet. (NOT AVAILABLE ON THIS MODEL)			Meterlink™ Wirelessly transmit data from a moisture meter or clampmeter to the Flir camera via bluetooth. The measurements are displayed on the screen and then captured when you save the image. (NOT AVAILABLE ON THIS MODEL)
	3.1 Megapixel Camera   3.1 Mp resolution and LED lights. (NOT AVAILABLE ON THIS MODEL)			Digital Zoom 1-4x continuous digital zoom. (NOT AVAILABLE ON THIS MODEL)
	Text & Voice Notes Text comments can be selected froma list. A bluetooth headset is also included to make voice notes. (NOT AVAILABLE ON THIS MODEL)			Instant Reports Creat instant reports and copy them directly to a USB. (NOT AVAILABLE ON THIS MODEL)
	Interchangeable Lenses In order to adapt the Flir E30bx to every situation both wide angle or telephoto lenses are available.			Picture-in-Picture (PiP) Allows you to overlay the infrared image on the visual image while retaining all measurement data. (NOT SCALABLE ON THIS MODEL)
	Dew Point Alarm The built-in Dew Point Alarm displays areas with risk of surface condensation where mold growth could occur. The areas are visualized as a colored isotherm.			Insulation Alarm The built-in Insulation Alarm easily detects areas that don´t fulfill the insulation requirements. The areas are visualized as a colored isotherm.

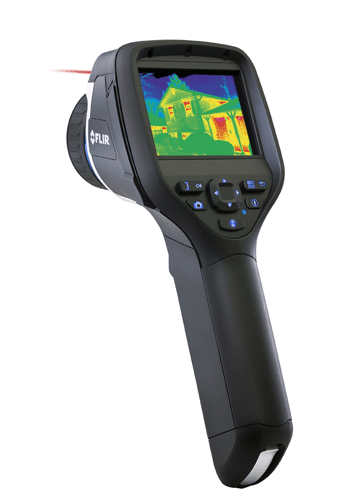

	Tempreture Range -20°C - 120°C			Laser Pointer A conveniently located button activates the laser locator that will help you associate the hot or cold spot in the IR image with the real physical target in the field. The laser market is also displayed on the IR image itself for accurate positioning.
	Video Output Composite video-out connection allows to you output live images to an external device.			Thermal Fusion Merges thermal and infrared images to offer better analysis. (NOT AVAILABLE ON THIS MODEL)

Invaluable for moisture problems and mold problems!

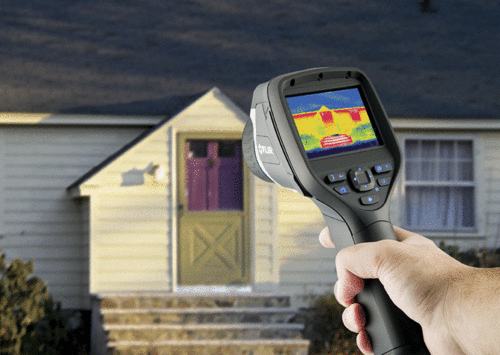

Moisture in building materials can destroy the structural integrity and nurture mold and insect infestation. Infrared cameras can instantly image entire rooms, inspect hard-to-reach places, reveal wet conditions behind surfaces at the source, and then monitor when the area is completely dry.


What can infrared cameras do for you?

Infrared cameras meet the stringent demands of building diagnostics. They feature immediate high-resolution thermal imagery, which reveals potential structural and moisture issues, energy efficiency and even rodents or pests. Use an infrared camera to find:

Moisture
Missing or defective insulation
Structural shortcomings
HVAC problem areas
Sourced of heating/cooling losses
Plumbing blockages
Roof leaks
Electrical issues
Rodents and other pests
And much more!


Who uses thermal imaging cameras?

Building Inspectors
Electricians
General Contractors
Home Efficiency Consultants
Plant Maintenance Professionals
HVAC/R Contractors
Mold Remediation Professionals
Plumbers


Applications:

Detect hidden problems, make quick damage assessments
Check for overheating of electrical panels and transformers
Avoid electrical failures
Identify faults in heating and cooling systems
Find problems with motors, fans and bearings
Generate reports, analyze and document your findings with the easy-to-use software

Flir Ebx Series Camera Comparison:
Model	FLIR E30bx	FLIR E40bx	FLIR E50bx	FLIR E60bx
Image Performance
IR resolution	160 × 120 pixels (19,200) measurement points per image	160 × 120 pixels (19,200) measurement points per image	240 × 180 pixels (43,200) measurement points per image	320 × 240 pixels (76,800) measurement points per image
Spatial resolution	2.72 mrad	2.72 mrad	1.82 mrad	1.36 mrad
Thermal sensitivity	< 0.1 °C	< 0.045 °C	< 0.045 °C	< 0.045 °C
Zoom	N/A	1-2x continuous digital zoom	1-4x continuous digital zoom	1-4x continuous digital zoom
Image presentation
Picture in Picture	N/A	IR area on visual image	Scalable IR area on visual image	Scalable IR area on visual image
Thermal Fusion	N/A	N/A	Yes	Yes
Measurement analysis
Spotmeter	1	3	3	3
Area	1 box with min. / max. / average	3 boxes with min. / max. / average	3 boxes with min. / max. / average	3 boxes with min. / max. / average
Difference temperature	N/A	Delta temperature between measurement functions or reference temperature	Delta temperature between measurement functions or reference temperature	Delta temperature between measurement functions or reference temperature
Reporting
Instant report	N/A	N/A	N/A	Yes
Digital camera
Built-in digital camera	N/A	3.1 Mpixels, and one LED light	3.1 Mpixels, and one LED light	3.1 Mpixels, and one LED light
Image annotations
Voice	N/A	60 seconds via Bluetooth®	60 seconds via Bluetooth®	60 seconds via Bluetooth®
Text	N/A	Text from predefined list or soft keyboard on touch screen	Text from predefined list or soft keyboard on touch screen	Text from predefined list or soft keyboard on touch screen
External sensors	N/A	Possible to connect, via Bluetooth, Extech Moisture meter MO297 or Extech clamp meter EX845	Possible to connect, via Bluetooth, Extech Moisture meter MO297 or Extech clamp meter EX845	Possible to connect, via Bluetooth, Extech Moisture meter MO297 or Extech clamp meter EX845
Image storage
Type	IR images	IR/visual images; simultaneous storage of visual and IR images	IR/visual images; simultaneous storage of visual and IR images	IR/visual images; simultaneous storage of visual and IR images
Data communication interfaces
Bluetooth®, WiFi	N/A	Yes	Yes	Yes

your shipment will include:
1 no. FLIR E30bx Infrared Camera
1 no. Protective Carry Case
1 no. SD MemoryCard
1 no. Video Cable
1 no. USB cable
1 no. Battery
1 no. Wrist Strap
1 no. FLIR Tools PC Software CD-ROM
1 no.Getting Started Guide and User´s manual CD in 21 languages
1 no.Power supply/charger with EU, UK, US and australian plugs
1 no. Flir E30bx Calibration Certificate
1 no. 24 Month Warranty
1 no. 30 Day Money Back Guarantee
1 no. Comprehensive FLIR Dealer Technical Advice & Support
