Leica LINO L2+ Crosshair Laser Level

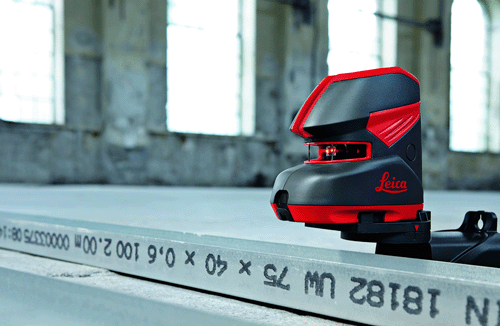

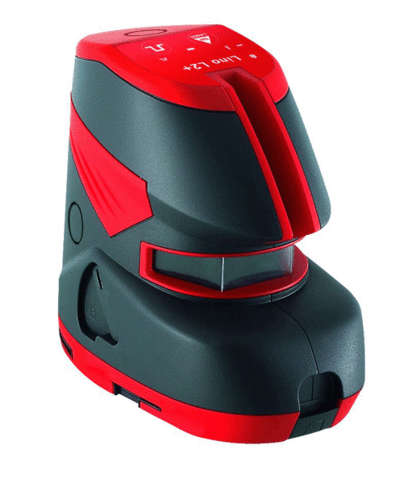

LINO L2+ Crosshair Laser Level

The time-consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2+ projects them exactly, quickly and easily – allowing you to concentrate on the job in hand. The improved emergence angel ensures outstanding visibility and extension of the laser lines and allow perfect levelling and alignment at long distances.

Featured with

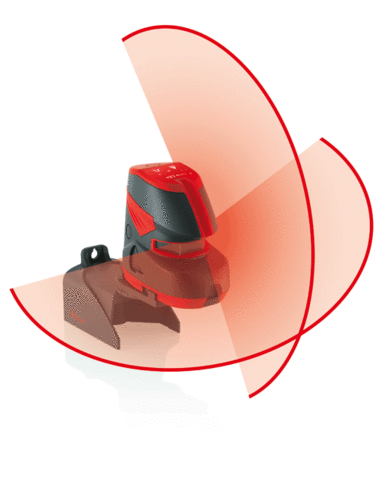

Emergence angle of 180°
Pulse function with power-saving mode
Modern, ergonomic housing
Exact 90° angle
Very easy to use
Lock Button to secure mechanism during transport - Save unnecessary wear & tear.

    Extra long laser lines

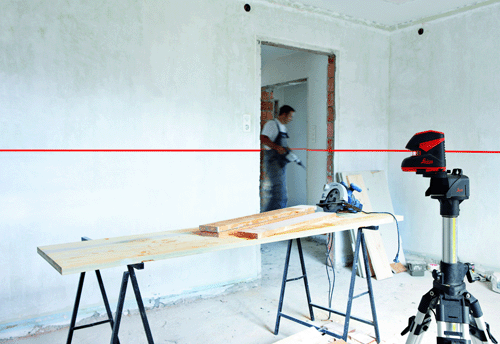

The improved emergence angle ensures outstanding visibility and extension of the laser line for perfect levelling and alignment at long distances. It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.
The instrument is set up quickly and effortlessly to project horizontal or vertical lines. Minor angular mis-alignments of ± 4° are compensated automatically. If the tilt is outside these limits, the device does not project any lines and errors are therefore prevented.
  Working in bright conditions
The pulse function is not just an energy-saving mode: it also allows you to locate the laser lines using a laser detector, even in very bright lighting conditions. A series of acoustic signals from the detector indicates the precise position of the laser beam plane
  Lock function
You can manually switch off the self-levelling features using the lock function. The laser line can then be projected at any angle. The lock function also serves as transport protection.


  LINO Range
Functions L2+ P3 P5 L2P5


Horizontal levelling

Plumbing up and down
Vertical aligning

Vertical & horizontal aligning

Setting out right angles


Aligning at an angle

360° Coverage

Technical Data L2+ P3 P5 L2P5


Typical measuring accuracy @ 5m ± 1.0 mm ± 1.5 mm ± 1.5 mm ± 1.5 mm

± 1.5 mm

Range (* depending on lighting) Visual 15m* 15m* 15m* 15m*


Range with detector 30m+ n/a n/a 30m+


Self levelling range ±5° ±5° ±5° ±5°


Number of laser points 0 3 5 4


Number of laser lines 2 0 0 2
Beam direction vertical, horizontal up, down, forward up, down, forward, left, right vertical, horizontal, up, down, left, right

vertical, horizontal

Batteries 3 x 1.5V (AA) 3 x 1.5V (AA) 3 x 1.5V (AA) 4 x 1.5V (AA)

upto 20 hours

Protection Class IP54


Operation temperature - 10°C to 40°C
Storage temperature - 25°C to 70°C
Tripod thread 1/4"
Weight with batteries 370g 310g 321g 370g


Dimensions 115 x 130 x 75 mm 99 x 108 x 59 mm 99 x 108 x 59 mm 115 x 130 x 75 mm

132 x 145 x 96 mm

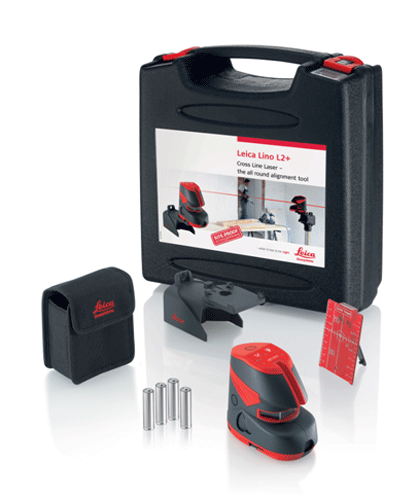

your shipment will include:
1 no. Leica LINO L2+ (In Stock)
1 no. Protective Holster
1 no. Target Plate

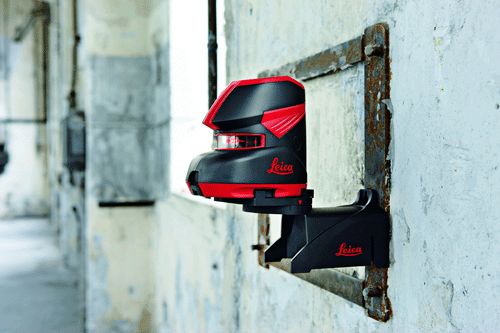

1 no. Magnetic Multifunction Adaptor
3 no. AA Batteries
1 no. Instruction Sheet
1 no. 36 Month Warranty
1 no. 30 Day Money Back Guarantee
1 no. Comprehensive Leica Dealer Technical Advice & Support
1 no: FREE Next Working Day Delivery



OUR PRICE (ex. vat):  £169.00
(inc. vat @20%) £202.80
Free Next Day Delivery (UK)
