Leica LINO L2P5 Dot-line laser – all in one layout and alignment tool!

LINO L2P5 Dot-line laser – all in one layout and alignment tool!

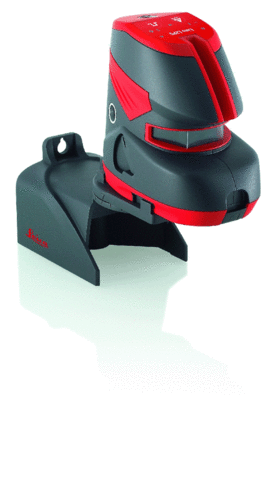

Leica Lino L2P5 – Multi-functionality perfected

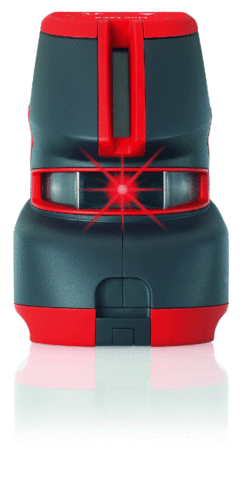

The Leica Lino L2P5 combines all the advantages of Leica Lino dot and line lasers. The five laser dots are precisely aligned at right angles to one another. The laser cross lines make alignment so simple.

Featured with


Self-levelling
Exact 90° angle
Large glass lens
Modern, ergonomic housing
Very easy to use

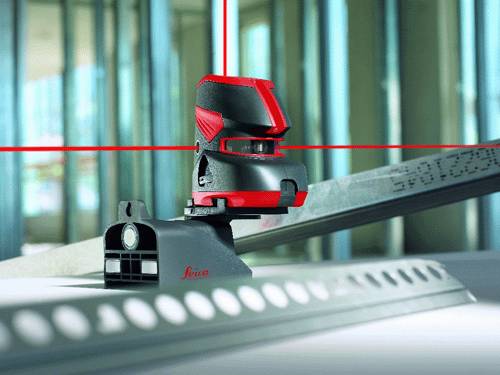

  Aligning

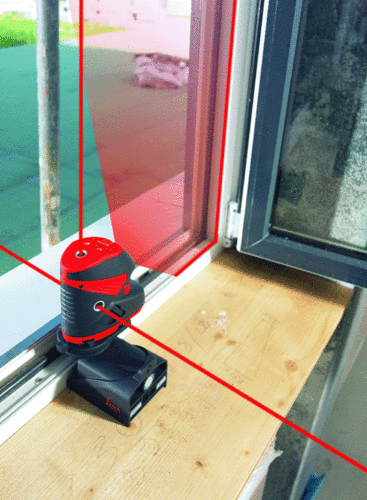

In addition to the plum beams, the Leica Lino L2P5 projects two dots and lines. Aligning win-dows, partition walls and other building elements becomes quick and easy.

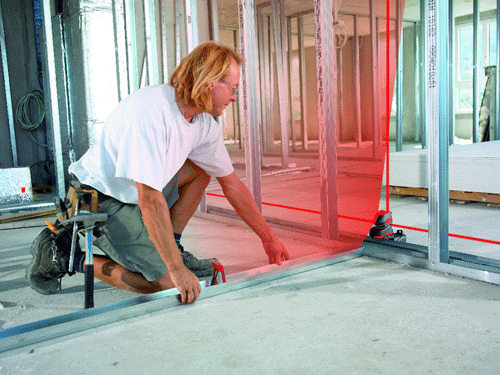

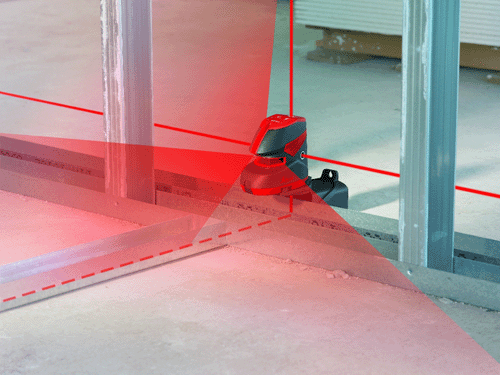

  Setting out right angles

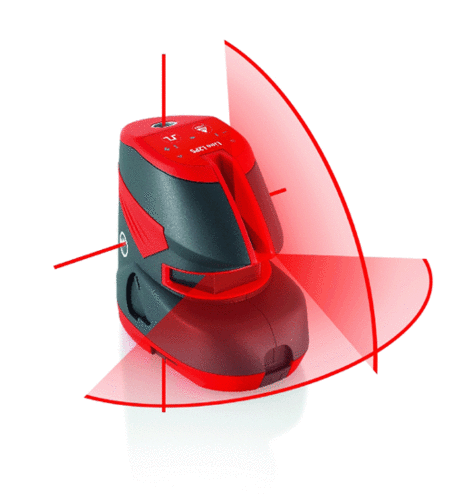

The Leica Lino L2P5 has 4 lines and two dots which are exactly at right angles to one another. This simpli-fies setting out tasks and makes your interior fitting-out more precise and efficient.
  Self-levelling
Minor angular misalignments of ±4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines or dots.



  LINO Range
Functions L2+ P3 P5 L2P5

L360

Horizontal levelling

Plumbing up and down
Vertical aligning

Vertical & horizontal aligning

Setting out right angles



Aligning at an angle

360° Coverage

Technical Data L2+ P3 P5 L2P5

L360

Typical measuring accuracy @ 5m ± 1.0 mm ± 1.5 mm ± 1.5 mm ± 1.5 mm

± 1.5 mm

Range (* depending on lighting) Visual 15m* 15m* 15m* 15m*

15m*

Range with detector 30m+ n/a n/a 30m+

30m+

Self levelling range ±5° ±5° ±5° ±5°

±5°

Number of laser points 0 3 5 4

0

Number of laser lines 2 0 0 2
Beam direction vertical, horizontal up, down, forward up, down, forward, left, right vertical, horizontal, up, down, left, right

vertical, horizontal

Batteries 3 x 1.5V (AA) 3 x 1.5V (AA) 3 x 1.5V (AA) 4 x 1.5V (AA)

Rechargeable
upto 20 hours

Protection Class IP54

IP65

Operation temperature - 10°C to 40°C
Storage temperature - 25°C to 70°C
Tripod thread 1/4"
Weight with batteries 370g 310g 321g 370g

1009g

Dimensions 115 x 130 x 75 mm 99 x 108 x 59 mm 99 x 108 x 59 mm 115 x 130 x 75 mm

132 x 145 x 96 mm



your shipment will include:
1 no. Leica LINO L2P5 (In Stock)
1 no. Protective Holster
1 no. Target Plate
1 no. Magnetic Multifunction Adaptor
3 no. AA Batteries
1 no. Instruction Sheet
1 no. 36 Month Warranty
1 no. 30 Day Money Back Guarantee
1 no. Comprehensive Leica Dealer Technical Advice & Support
1 no: FREE Next Working Day Delivery







OUR PRICE (ex. vat):  £279.00
(inc. vat @20%) £334.80
Free Next Day Delivery (UK)
View all products by Leica
Additional Product Images
Associated Products
RVL 100 Laser Receiver & Bracket
The Leica RVL 100 Laser Receiver has been specifically designed to work with line lasers and increases the working range especially when working outdoors and in bright conditions.
Stock Code: 803-784962
OUR PRICE (ex. vat): £89.00
CLR 290 Ceiling Pole
Use with Leica ceiling pole with the Leica Lino line laser or rotating laser, for accurate levelling. Simply fix into place upto a height of 290cm and then adjust the clamp to set the height of your laser beam.
Stock Code: 803-761762
OUR PRICE (ex. vat): £59.00
TRI70 Tripod With Crank Drive
Ideal for adjusting the height of the laser beam when used in conjunction with the Leica Lino range of line lasers.
Stock Code: 801-794963
OUR PRICE (ex. vat): £39.00
