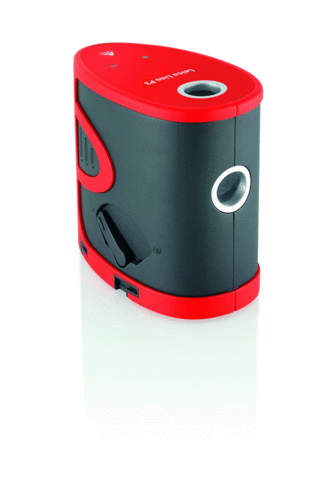

Leica LINO P3 3 dot laser for easy and perfect plumbing

LINO P3 3 dot laser for easy and perfect plumbing

Practical and simple to operate! The Leica Lino P3 dot laser transfers all the dots you need, quickly and accurately. It is an efficient solution for professional plumbing and aligning tasks.

Featured with:

Modern, ergonomic housing
Self-levelling
Power Range Technology™
Practical multifunction adapter
Very easy to use










  Self-levelling
Minor angular misalignments of ±4° are compensated automatically. If the angular misalignment is greater, the device does not project any dots.

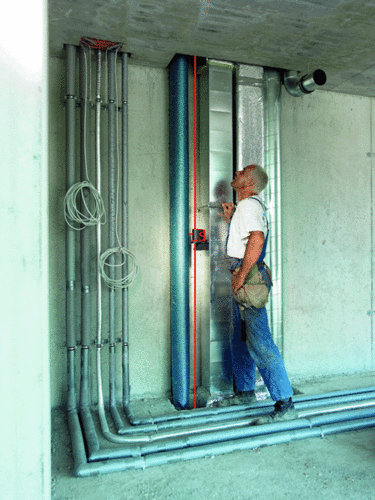

  Professional plumbing

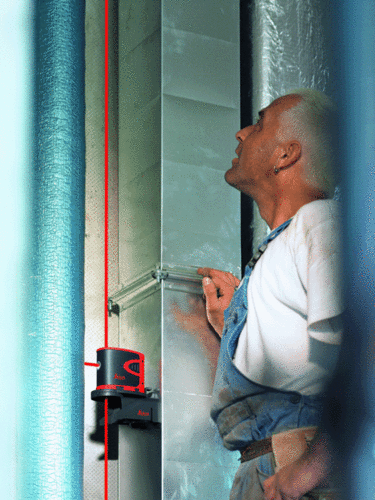

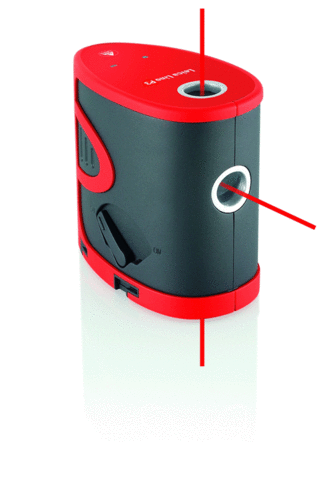

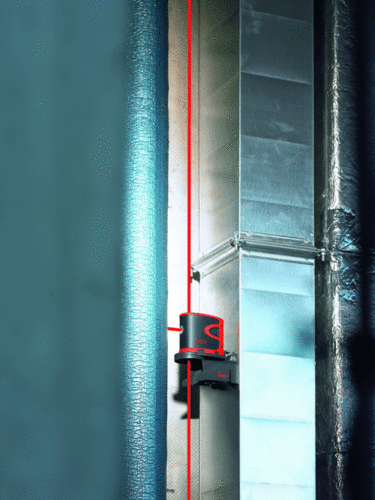

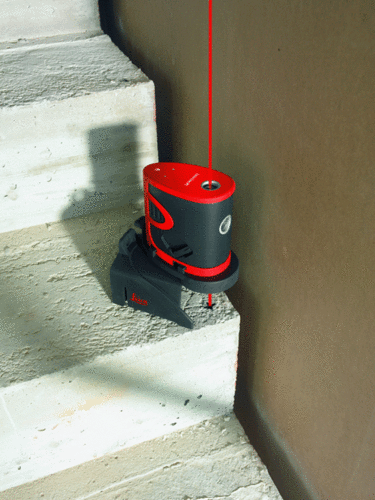

The Leica Lino P3 is excellent for plumbing up and down. The laser beam is projected above and below the instrument, allowing to transfer reference dots quickly and efficiently.
  Expanded range of applications

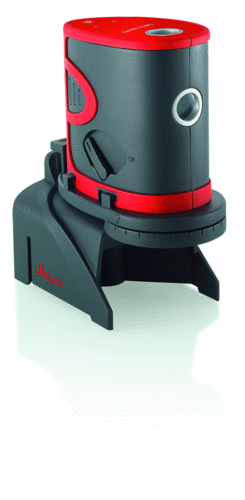

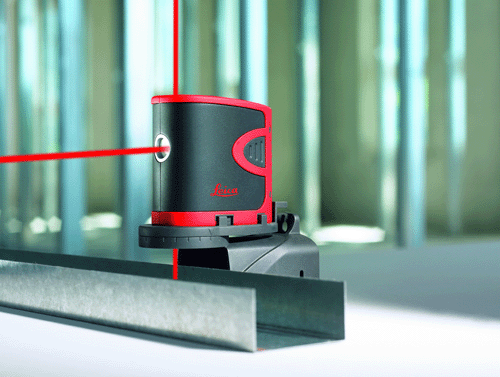

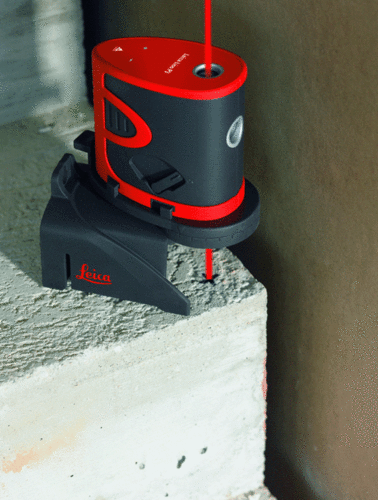

The adapter offers many possibilities. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron with the integrated magnet



  LINO Range
Functions L2+ P3 P5 L2P5

L360

Horizontal levelling

Plumbing up and down
Vertical aligning

Vertical & horizontal aligning

Setting out right angles



Aligning at an angle

360° Coverage

Technical Data L2+ P3 P5 L2P5

L360

Typical measuring accuracy @ 5m ± 1.0 mm ± 1.5 mm ± 1.5 mm ± 1.5 mm

± 1.5 mm

Range (* depending on lighting) Visual 15m* 15m* 15m* 15m*

15m*

Range with detector 30m+ n/a n/a 30m+

30m+

Self levelling range ±5° ±5° ±5° ±5°

±5°

Number of laser points 0 3 5 4

0

Number of laser lines 2 0 0 2
Beam direction vertical, horizontal up, down, forward up, down, forward, left, right vertical, horizontal, up, down, left, right

vertical, horizontal

Batteries 3 x 1.5V (AA) 3 x 1.5V (AA) 3 x 1.5V (AA) 4 x 1.5V (AA)

Rechargeable
upto 20 hours

Protection Class IP54

IP65

Operation temperature - 10°C to 40°C
Storage temperature - 25°C to 70°C
Tripod thread 1/4"
Weight with batteries 370g 310g 321g 370g

1009g

Dimensions 115 x 130 x 75 mm 99 x 108 x 59 mm 99 x 108 x 59 mm 115 x 130 x 75 mm

132 x 145 x 96 mm

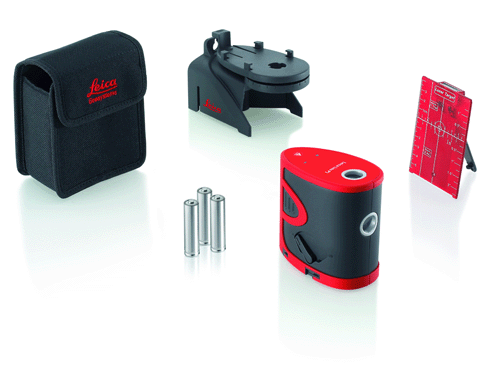

your shipment will include:
1 no. Leica LINO P3 (In Stock)
1 no. Protective Holster
1 no. Target Plate
1 no. Magnetic Multifunction Adaptor
3 no. AA Batteries
1 no. Instruction Sheet
1 no. 36 Month Warranty
1 no. 30 Day Money Back Guarantee
1 no. Comprehensive Leica Dealer Technical Advice & Support
1 no: FREE Next Working Day Delivery









OUR PRICE (ex. vat):  £129.00
(inc. vat @20%) £154.80
Free Next Day Delivery (UK)
