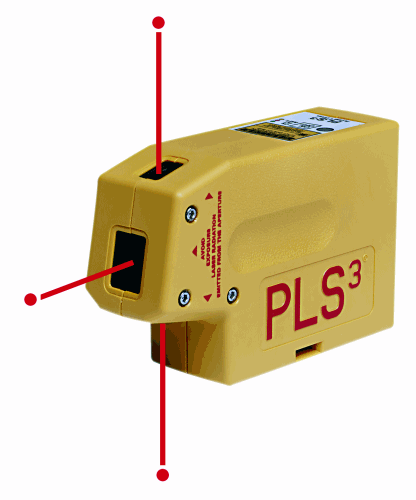

This easy to use PLS3 self levelling laser point to point alignment tool is suited for laying out reference points faster than traditional labour intensive methods.
No more swinging plumb bobs with the PLS3 you can plum instantly from the floor to ceiling or from 15mtrs off the ground
Use the PLS3 as your partner on the jobsite, self leveling, no time wasted with bubble vials turn the PLS3 on and go to work take clear stable reference points indoors and outdoors
We offer the PLS3 shown here fitted with a 3 beam laser system, we also offer the higher specification 5 beam laser system fitted to the PLS5.
 |
PLS5 |
PLS3 |
| Light Source |
Semiconductor laser diode
630-650nM, visible |
Semiconductor laser diode
630-650nM, visible |
| Working Range |
30m |
30m |
| Accuracy |
<1/8" @ 100 feet
(<3mm @ 30m) |
<1/4" @ 100 feet
(<3mm @ 30m) |
| Leveling |
Automatic |
Automatic |
| Leveling Range |
8 degrees |
8 degrees |
| Power Supply |
3 AA batteries
alkaline or rechargeable NiCad |
3 AA batteries
alkaline or rechargeable NiCad |
| Operating Time |
+30 hrs. continuous use |
+30 hrs. continuous use |
| Operating Temp. |
0F to 122F
(-18C to 50C) |
0F to 122F
(-18C to 50C) |
| Storage Temp. |
-40F to 158F
(-40C to 70C) |
-40F to 158F
(-40C to 70C) |
| Environmental |
Water resistant; not submersible |
Water resistant; not submersible |
| Dimensions |
2.5" x 6.5" x 4.25" |
1.5" x 4.25" x 3.125" |
| Weight (with batteries) |
1.7 lbs. (.77kg) |
12 oz. (.33kg) |
|
