No more 3-4-5 as the PLS5 point to point alignment tool is suited for laying out reference points faster than traditional labour intensive methods.
No more swinging plumb bobs with the PLS5 you can plum instantly from the floor to ceiling or from 15mtrs off the ground
Use the PLS5 as your partner on the jobsite, self leveling, no time wasted with bubble vials turn the PLS3 on and go to work take clear stable reference points indoors and outdoors

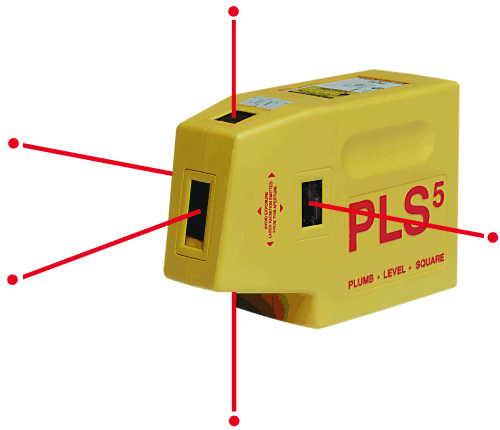

We offer the PLS5 shown here fitted with a 5 beam laser system, we also offer the lower specification 3 beam laser system fitted to the PLS3.
Specification:
 Working range 30mtrs
Accuracy (all beams) 3mm @ 30mtrs
Leveling is automatic
Pendulum layout target
Leveling range +/-8 degrees
Powered by 3 x AA batteries
Operating time +30hrs continuous
Complete with floor stand
Complete with wall bracket
Compact carrying case
Size 38mm x 110mm x 80mm
Weight 0.5kgs
PROVIDE POINT-TO-POINT ALIGNMENT INFORMATION
Lay out reference points faster than traditional, labour intensive methods. No more 3-4-5. No more swinging plumb bobs. Plumb instantly from floor to ceiling or from 50 feet off the ground! Use PLS as your partner on the jobsite. Self-leveling: no time wasted with bubble vials. Turn it on and go to work. Take clear, stable reference points indoors and outdoors.
 |
PLS5 |
PLS3 |
| Light Source |
Semiconductor laser diode
630-650nM, visible |
Semiconductor laser diode
630-650nM, visible |
| Working Range |
30m |
30m |
| Accuracy |
<1/8" @ 100 feet
(<3mm @ 30m) |
<1/4" @ 100 feet
(<3mm @ 30m) |
| Leveling |
Automatic |
Automatic |
| Leveling Range |
8 degrees |
8 degrees |
| Power Supply |
3 AA batteries
alkaline or rechargeable NiCad |
3 AA batteries
alkaline or rechargeable NiCad |
| Operating Time |
+30 hrs. continuous use |
+30 hrs. continuous use |
| Operating Temp. |
0F to 122F
(-18C to 50C) |
0F to 122F
(-18C to 50C) |
| Storage Temp. |
-40F to 158F
(-40C to 70C) |
-40F to 158F
(-40C to 70C) |
| Environmental |
Water resistant; not submersible |
Water resistant; not submersible |
| Dimensions |
2.5" x 6.5" x 4.25" |
1.5" x 4.25" x 3.125" |
| Weight (with batteries) |
1.7 lbs. (.77kg) |
12 oz. (.33kg) |
|
