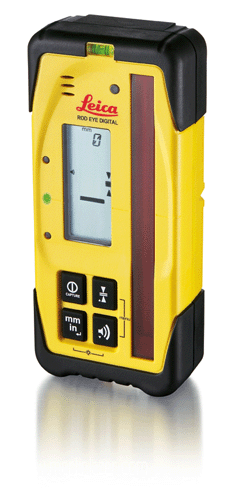

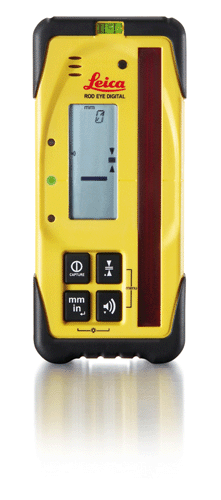

The Rod Eye Digital is the top of the line receiver with digital readout, half millimeter accuracy, and strobe rejection.

The Digital has a 127 mm (5 inch) pickup window which is the result of truly unique technology and provides
the RodEye Digital with the best accuracy in the industry.

Digital Technology	Huge Reception Window
Bright LED Indicators	Long Working Range
Millimeter Accuracy	100 % Waterproof
Anti Strobe Protection	Three Year Warranty

Features:

  Digital Readout – The large numbers are clear and easy to read, so you stay on grade.
   The 21 step arrow displays provide a graduated

  Anti-Strobe Protection – Detects and ignores the flash from strong strobes on the job
   so that they will not interfere with the receiver function.

  LCD indication – Two, large graphic displays on the front and back of the receiver.

  LED indication – Three bright LED’s can be used as a ready reference for the receiver
   position.

  Protective Overmold – Protects the receiver from drops in tough jobsite conditions.

  Level Vial – Ensures good alignment and improves your reading.

  Exceptional Reception – The extra long reception window includes the unique
   technology that provides accurate digital input.

  Audio Indication – Four audio settings. Up to 110 decibels for noisy jobs.

  Menu Function – Additional options are available to set your functional preferences.

  Units of Measure – Digital information is displayed above and below grade in mm, cm,
   inches, fraction of inches and feet.

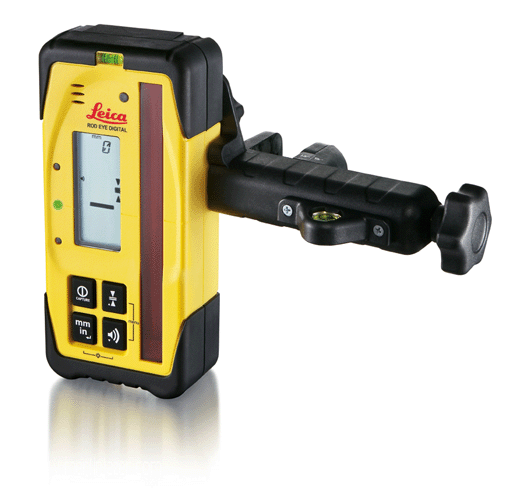

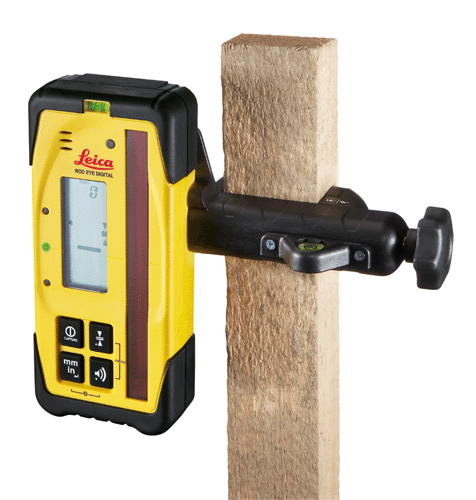

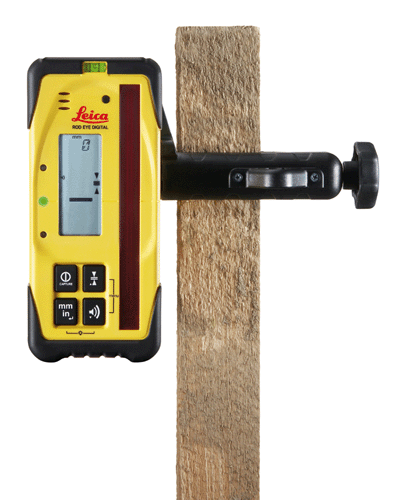

  Versatile Rod Bracket – A reversible locking clamp ensures solid mounting to both
   square and oval rods.

  Offset Grade Readings – A second locking position on the receiver moves the bracket
   up and provides move information above grade.

Technical data	Leica Rod Eye Digital	Leica Rod Eye Plus	Leica Rod Eye Basic
Working Radius (meters)	450	450	150
Detection Height (mm)	127	50	36
Detection Accuracies (mm)	±0.5, 1, 2, 5, 10	±1, 2, 3	±1, 3
Audio Volumes (dBA)	110 / 95 / 65 / Off	100 / 70 / Off	High / Low / Off
Auto Shut Off	0.5, 24 hours / none	0.5 hours	0.2 Hours
Arrow Display	21 Channels	9 Channels	5 Channels
LED Display	Yes (5 Channels)	Yes (5 Channels)	No
Digital Readout With Height	Yes	No	No
Anti-Strobe Protection	Yes	Yes	No
Memory Last Beam Strike	Yes	Yes	No
Beam Finding (Double Beep)	Yes	Yes	No
Rod Master	Yes	Yes	No
Warranty	Three Years	Two Years	One Year
Environmental	IP67	IP67	IP54
Batteries	60+ Hours	70+ Hours	N/A
Bracket, Reversible Jaw	Yes	Yes	No
Bracket Level Vial	Yes	Yes	Yes
