Features & Benefits
 LCD on front
 Working diameter of 1,000 ft (300 m)
 Detection height of 1.5 inches (38 mm)
 3-channel grade display
 Beeper emits an audible tone that
  indicates on-grade, high or low
 Designed for use in harsh, loud,
  construction environments
 Works with any rotating laser
 General purpose clamp designed to
  mount on various mounts and staffs
 24-month warranty

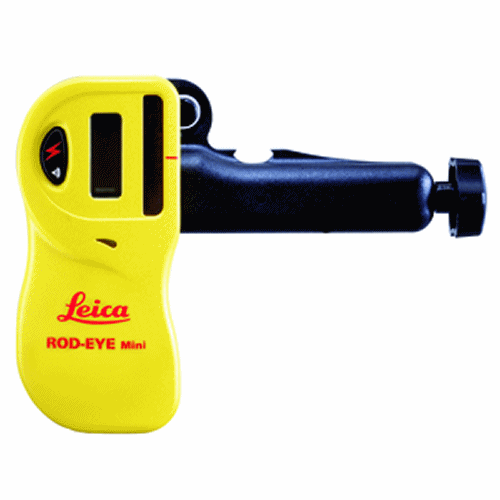

The ROD-EYE Mini is also for general construction applications. It features an LCD indication on the front panel, and has a working diameter of 1,000 ft (300 m).

Technical Data	ROD-EYE Pro	ROD-EYE Classic	ROD-EYE Mini
	more info	more info	more info
Working Diameter	6 ft to 2500 ft (2 m to 750 m)*	6 ft to 2500 ft (2 m to 750 m)*	6 ft to 1000 ft (2 m to 300 m)*
Detection Height	2 inches (50 mm)	2 inches (50 mm)	1.5 inches (38 mm)
Detection Accuracy	Standard Accuracy Bandwidth Super fine ± 0.020 in (0.50 mm) Fine ± 0.040 in (1 mm) Medium ± 0.080 in (2 mm) Course ± 0.120 in (3 mm) Industrial Accuracy Bandwidth Zero bandwidth ± 0.00 in (0.00 mm) Fine Industrial ± 0.0025 in (0.064 mm) Course Industrial ± 0.0050 in (0.127 mm)	Standard Accuracy Bandwidth Fine ± 0.040 in (1 mm) Course ± 0.120 in (3 mm)	± 0.080 in (2 mm)
Reception Angle	± 45°	± 45°	± 45°
Display	LCD front and rear	LCD front and rear	LCD
Grade Display	9 channel grade display	5 channel grade display	3 channel grade display
Beeper Volumes	High 110 dBA Low 90 dBA & Off	High 110 dBA Low 90 dBA & Off	High 100+ dBA Low 65 dBA
Battery Size	2 AA	2 AA	2 AA
Battery Life	70+ hours**	70+ hours**	200+ hours**
Low Battery Indicator	Yes	Yes	Yes
Rod Master	Yes – indicates when the RUGBY’s batteries are low	No	No
Automatic Shut Off	30 minutes, 24 hours, or none (optional)	30 minutes	30 minutes
Dimensions	6.4 x 2.9 x 1.2 inches (163 x 74 x 30 mm)	6.4 x 2.9 x 1.2 inches (163 x 74 x 30 mm)	4.5 x 2.1 x 1.3 inches (114 x 53 x 32 mm)
Offset notch	2 inches (50 mm)	2 inches (50 mm)	1 inch (25 mm)
Operating Temperature	–20°C to 60°C (–4° F to 140°F)	–20°C to 60°C (–4° F to 140°F)	–20°C to 60°C (–4° F to 140°F)
Memory, Last Beam Strike	Yes	No	No
Rod-Eye Clamp	Yes, with reversible jaw for oval rods	Yes	Yes
Warranty	36 months	24 months	24 months
