Exceptional quality - great features

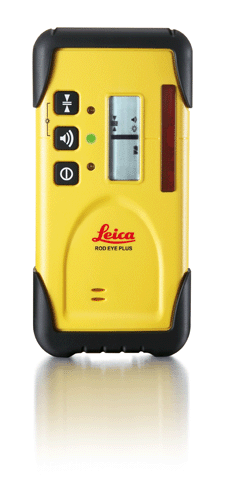

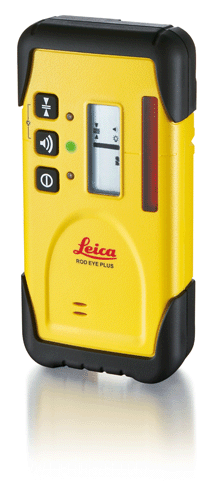

The Rod Eye Plus is a full featured receiver with proven performance in the field.

Three bright LED’s, nine channel arrow display and audio output provide the user with all the information needed to lock on the laser beam and get the job done right.


Additionally, the double beep beam finder, last beam strike memory, laser low battery indication and the reversible clamp for rectangular or oval rods put the Leica Rod Eye Plus at the top of the list for today’s contractor.




Features:

  LCD Indication – Two, large graphic displays on the front and back of the receiver.
  LED Indication – Three, bright LED’s can be used as a reference for the receiver’s
   position.
  Nine Channel Arrow Display – Provides a stepped reference as you approach the laser
   beam.
  Three Accuracy Bands – Allows you to work with a fine, medium or coarse band width.
  Anti-Strobe Protection – Detects and ignores the flash from strong strobes on the job.
  Zero Accuracy Band – Helpful when used to check the accuracy of your laser
    transmitter.
  Three Accuracy Bands – Allows you to work with a fine, medium or coarse band width.
  Beam Finding (double beep) – Pass the receiver through beam, the receiver to beep
   twice.
  Memory Last Beam Strike – Indicates the direction to move in order to return to the
   beam.
  Laser Low Battery Indicator – Alerts the user when the Rugby’s batteries are getting
   low.

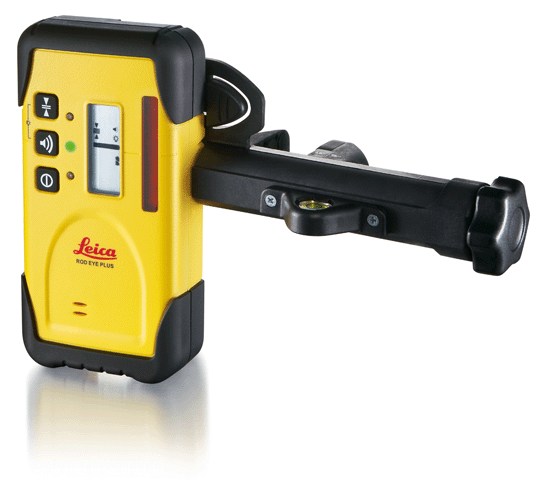

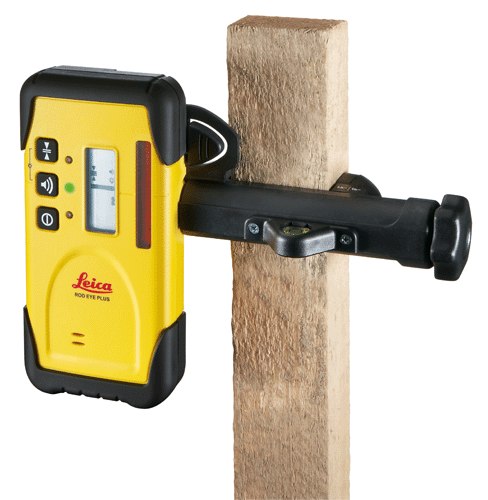

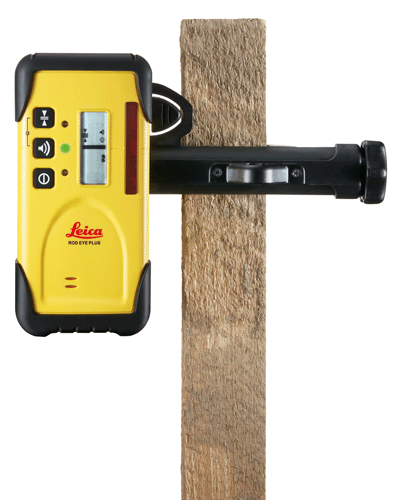

  Versatile Rod Bracket – A reversible clamp ensures solid mounting to both square and
   oval rods.

Technical data	Leica Rod Eye Digital	Leica Rod Eye Plus	Leica Rod Eye Basic
Working Radius (meters)	450	450	150
Detection Height (mm)	127	50	36
Detection Accuracies (mm)	±0.5, 1, 2, 5, 10	±1, 2, 3	±1, 3
Audio Volumes (dBA)	110 / 95 / 65 / Off	100 / 70 / Off	High / Low / Off
Auto Shut Off	0.5, 24 hours / none	0.5 hours	0.2 Hours
Arrow Display	21 Channels	9 Channels	5 Channels
LED Display	Yes (5 Channels)	Yes (5 Channels)	No
Digital Readout With Height	Yes	No	No
Anti-Strobe Protection	Yes	Yes	No
Memory Last Beam Strike	Yes	Yes	No
Beam Finding (Double Beep)	Yes	Yes	No
Rod Master	Yes	Yes	No
Warranty	Three Years	Two Years	One Year
Environmental	IP67	IP67	IP54
Batteries	60+ Hours	70+ Hours	N/A
Bracket, Reversible Jaw	Yes	Yes	No
Bracket Level Vial	Yes	Yes	Yes
