Leica Roteo 25HV - Fully Automatic Horizontal and Vertical Rotating Laser

Roteo 25HV - Fully Automatic Horizontal and Vertical Rotating Laser

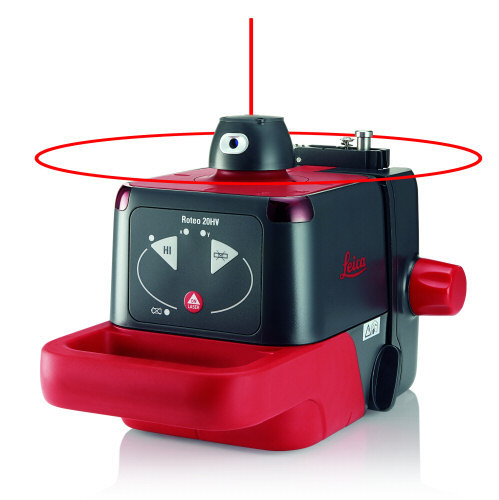

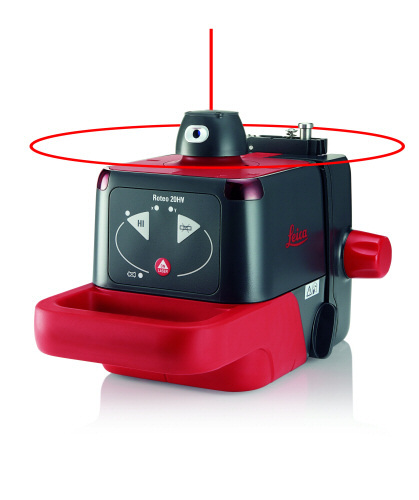

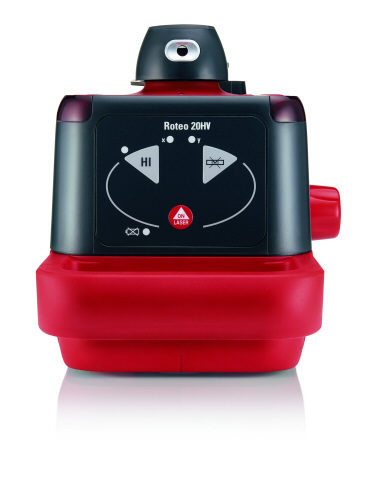

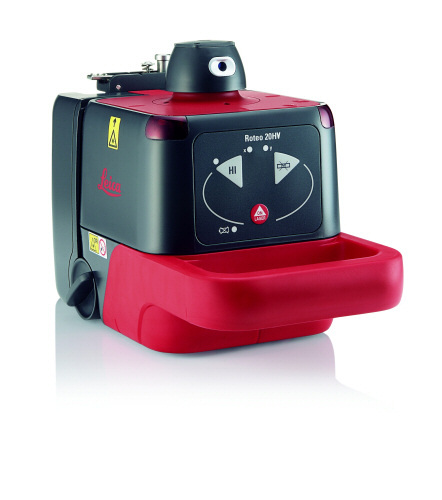

Leica Roteo 20HV - The basic model rotating laser

Simple and intuitive to operate

The Leica Roteo 20HV is the ideal rotation laser for basic users. Its easy-to-understand keypad is intuitive to operate.

The package includes a complete set of accessories for interior works with remote control, wall mount bracket and target plate.









Featured with:

 Fully automatic horizontal and vertical laser
 Manually adjustable wall mount
 Easy access to the laser head
 Scan mode
 90° plumb beam
 Outstanding battery life for working without interruption



Installing ceilings and walls

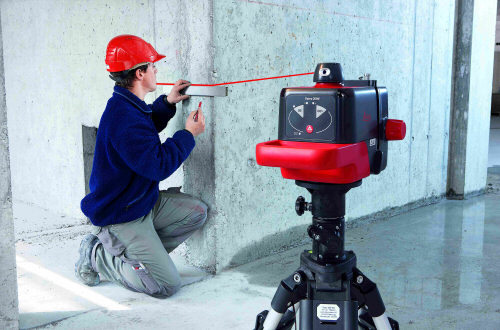

Marking out right angles

Stairs and roof pitches

With its manually adjustable wall mount, the Leica Roteo 20HV can be positioned on the wall and moved backwards and forwards, allowing you to suspend ceilings and erect drywalls. The Leica Roteo 20VH is also a great help in the vertical plane. The combination of a vertical 360° reference plane and plumb beam simplifies lay-out, allowing you to work more accurately and efficiently on interior works.

You can position the laser manually or with the help of the wall mount at any angle between 0° and 90°, allowing you to work without any problems on stairs an roof pitches.



Scan-90
With the Leica Roteo 20HV you can deselect the rotation mode and have the laser project either a spot or a fan of between 2 & 36° the increase the visibility of the laser.

IR Remote Control
Adjustments to the Leica Roteo 20HV are possible using the full function, infrared Remote Control.


Technical data

Leica
Roteo 35

Leica
Roteo 35G

Leica
Roteo 20HV

Leica
Roteo 25H

Range

up to 150 m (500 ft) radius with laser receiver

Self leveling accuracy

± 3 mm at 30 m (±1/8" at 100 ft)

Automatic
self levelling laser

horizontal, vertical

horizontal

Self levelling range

± 4.5°

Rotation speed

variable 0, 150, 300, 450, 600 rpm

600 rpm

Scanning angle

variable between 2° and 36°

n/a

Wall mount bracket

motorised

manual

n/a

Dimensions laser
(H x W x D)

189 x 136 x 208 mm (7.4 x 5.4 x 8.2") (without wall mount bracket)

Weight with batteries

1.7 kg (3.7lbs)

Battery types

Alkaline D cells, 2 x 1.5 V
or rechargeable battery pack (NiMH)

Alkaline D cells, 2 x 1.5 V

Alka D cells,
2 x 1.5 V or rechargeable battery pack (NiMH)

Battery life

50 hours
(rechargeable),
up to 160 hours
(alkaline batteries)

25 hours
(rechargeable),
up to 40 hours
(alkaline batteries)

up to 160 hours
(alkaline batteries)

50 hours
(rechargeable),
up to 160 hours
(alkaline batteries)

Protection class

IP 54, dust and
splash-proof

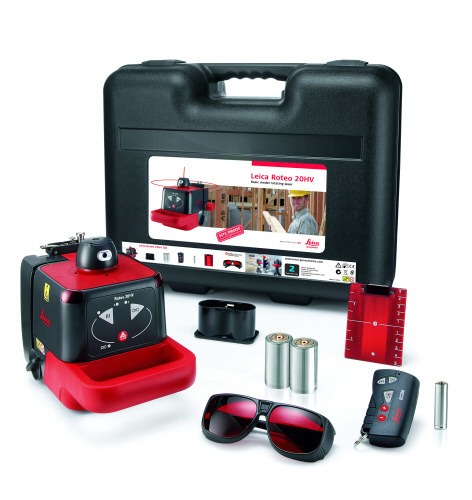

your shipment will include:
 1 no. Leica Roteo 20HV rotating laser
 1 no. Manually adjustable wall mount
 1 no. RC350 remote control
 1 no. Battery (AA) for the remote control
 1 no. Battery holder for alkaline batteries
 1 no. Batteries for laser
 1 no. Red target plate
 1 no. Red laser glasses
 1 no. 24 Month Warranty







OUR PRICE (ex. vat):  £499.00
(inc. vat @20%) £598.80
Download product information
