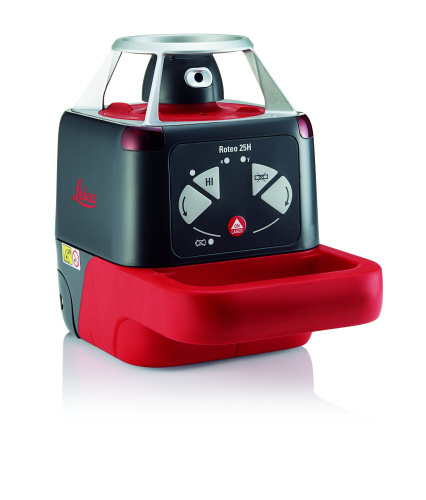

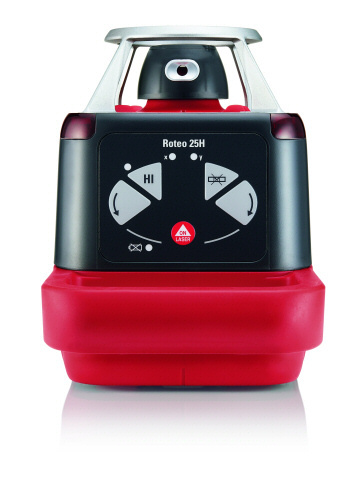

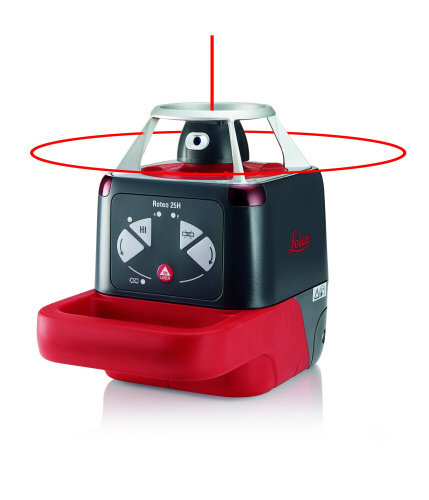

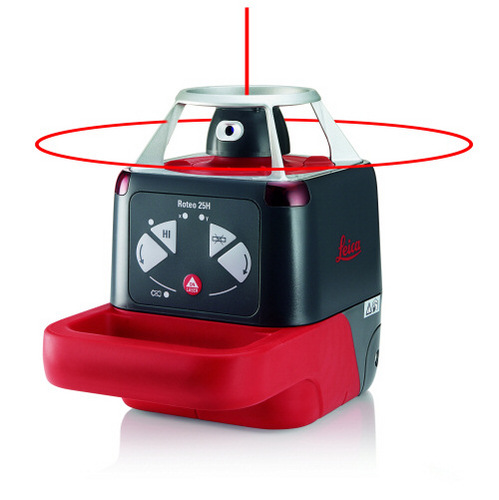

Leica Roteo 20H - The ideal package for outdoor applications

The Leica Roteo 25H offers fully auto-matic horizontal self-leveling and even the possibility of inclining the leveling plane on the instrument.

The detector supplied in the set efficiently locates the laser beam over long distances: An appealing package for exterior works.

Featured with:

 Fully automatic horizontal laser
 Inclination can be set
 Removable protective cage
 150 m range laser detector
 90° plumb beam
 Outstanding battery life for working without inter-ruption

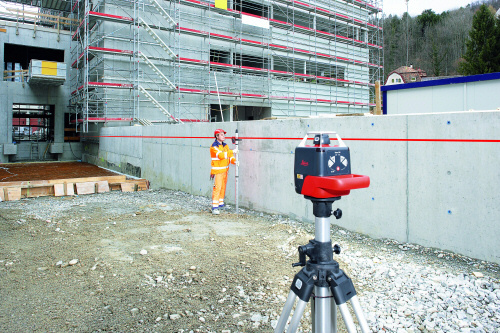

Laying paving	Marking without attachments - (optional extra)	All-round cost and time savings
Inclinations can be directly set on the Leica Roteo 25H, making paving laying to child’s play, e.g. in a garage entrance or garden.	The clamp rod and mounting platform is fitted between the floor and ceiling. This eases the task of marking walls and provides you with a stable mount for working heights up to 290 cm.	Our practical product solutions with the available ac-cessories, such as the remote control, detector and target plate, allow you to work more efficiently and save time and money. You can work alone, without an assistant.

R250 Laser Detector Work up to 150 m (500 ft) radius from the Roteo 25H with R250 laser detector included as standard.

Technical data	Leica Roteo 35	Leica Roteo 35G	Leica Roteo 20HV	Leica Roteo 25H
Range	up to 150 m (500 ft) radius with laser receiver
Self leveling accuracy	± 3 mm at 30 m (±1/8" at 100 ft)
Automatic self levelling laser	horizontal, vertical			horizontal
Self levelling range	± 4.5°
Rotation speed	variable 0, 150, 300, 450, 600 rpm			600 rpm
Scanning angle	variable between 2° and 36°			n/a
Wall mount bracket	motorised		manual	n/a
Dimensions laser (H x W x D)	189 x 136 x 208 mm (7.4 x 5.4 x 8.2") (without wall mount bracket)
Weight with batteries	1.7 kg (3.7lbs)
Battery types	Alkaline D cells, 2 x 1.5 V or rechargeable battery pack (NiMH)		Alkaline D cells, 2 x 1.5 V	Alka D cells, 2 x 1.5 V or rechargeable battery pack (NiMH)
Battery life	50 hours (rechargeable), up to 160 hours (alkaline batteries)	25 hours (rechargeable), up to 40 hours (alkaline batteries)	up to 160 hours (alkaline batteries)	50 hours (rechargeable), up to 160 hours (alkaline batteries)
Protection class	IP 54, dust and splash-proof

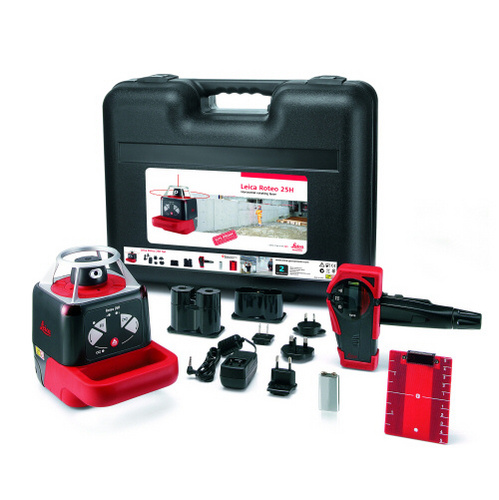

your shipment will include:  1 no. Leica Roteo 25H rotating laser  1 no. R250 detector with clamp (150m radius working range)  1 no. 9V-Battery for the detector  1 no. Battery holder for alkaline batteries  1 no. Rechargeable NiMH battery pack  1 no. International charger  1 no. Red target plate  1 no. 24 Month Warranty
