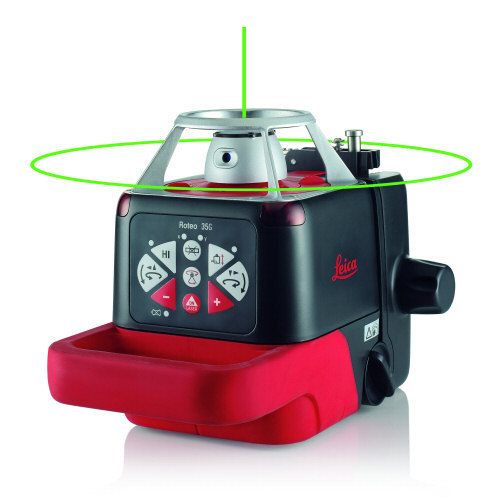

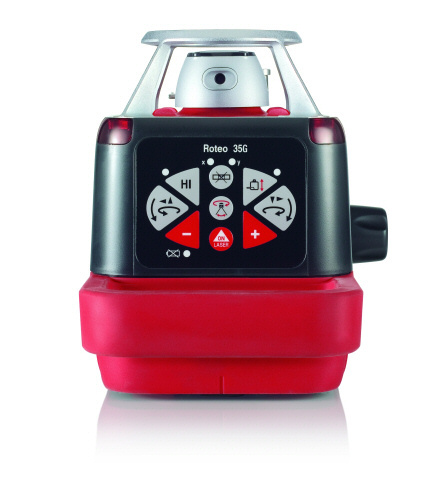

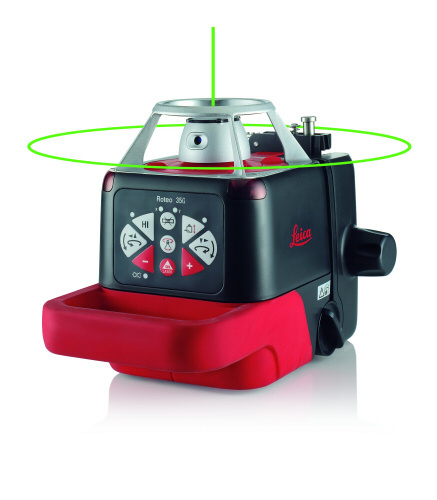

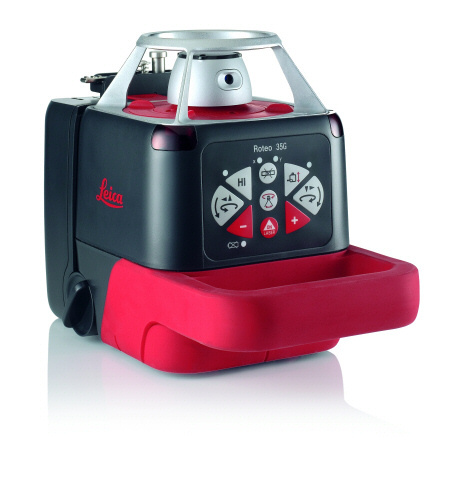

Leica Roteo 35G Fully Automatic Automatic Horizontal / Vertical Green Laser Level With Motorised Wall Mount

Roteo 35G Fully Automatic Automatic Horizontal / Vertical Green Laser Level With Motorised Wall Mount

Leica Roteo 35G - All-round perfection in every condition

On ceilings or walls, on the floor or on a tripod, the Leica Roteo 35G rotating laser is a multi-talented per-former.

You can use it to work precisely on many indoor tasks in which leveling or aligning is required in very bright conditions and over very long distances.

The package includes a complete set of accessories for interior works with remote control detector, motorised wall mount bracket and target plate.




The Leica Roteo 35G has all the characteristics of the Leica Roteo 35. In addition, it has a green laser beam. The pioneering green laser beam is four times more visible to the human eye. So you have the best possible visibility.

Featured with:

 Fully automatic horizontal and vertical laser
 Motorized wall mount
 Removable protective cage
 Scan mode
 90° plumb beam
 Outstanding battery life for working without interruption

The Leica Roteo 35WMR laser level features a motorised wall mount, allowing for the instrument to move easily up and down when attached to the wall for ceiling grid installations or aligning when used in its lay down mode. All operations can be controlled from the remote control and RRC350 laser detector eye.

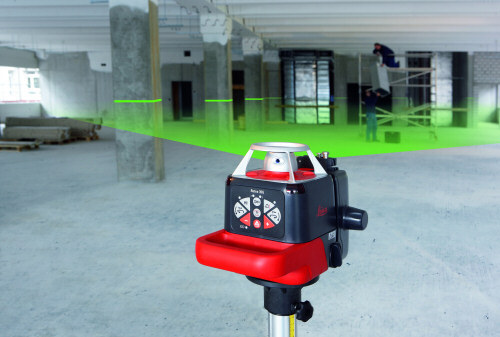

Installing ceilings and walls

Marking out right angles

Stairs and roof pitches

With its motorized wall mount, the Leica Roteo 35G can be posi-tioned on the wall and moved effortless backwards and forwards using the combined remote control/detector unit, allowing you to quickly suspend ceilings and erect drywalls. The Leica Roteo 35G is also a great help in the vertical plane. The combination of a vertical 360° reference plane and plumb beam simplifies lay-out, allowing you to work more accurately and efficiently on interior works.

You can position the laser manually or with the help of the wall mount at any angle between 0° and 90°, allowing you to work without any problems on stairs an roof pitches.



Scan-90
With the Leica Roteo 35G you can deselect the rotation mode and have the laser project either a spot or a fan of between 2 & 36° the increase the visibility of the laser.

IR Remote Control / Laser Detector
RRC350G combined remote control/detector unit with clamp allow the user to detect the laser when it cannot be seen and also access the many user functions of the unit itself.










Technical data

Leica
Roteo 35

Leica
Roteo 35G

Leica
Roteo 20HV

Leica
Roteo 25H

Range

up to 150 m (500 ft) radius with laser receiver

Self leveling accuracy

± 3 mm at 30 m (±1/8" at 100 ft)

Automatic
self levelling laser

horizontal, vertical

horizontal

Self levelling range

± 4.5°

Rotation speed

variable 0, 150, 300, 450, 600 rpm

600 rpm

Scanning angle

variable between 2° and 36°

n/a

Wall mount bracket

motorised

manual

n/a

Dimensions laser
(H x W x D)

189 x 136 x 208 mm (7.4 x 5.4 x 8.2") (without wall mount bracket)

Weight with batteries

1.7 kg (3.7lbs)

Battery types

Alkaline D cells, 2 x 1.5 V
or rechargeable battery pack (NiMH)

Alkaline D cells, 2 x 1.5 V

Alka D cells,
2 x 1.5 V or rechargeable battery pack (NiMH)

Battery life

50 hours
(rechargeable),
up to 160 hours
(alkaline batteries)

25 hours
(rechargeable),
up to 40 hours
(alkaline batteries)

up to 160 hours
(alkaline batteries)

50 hours
(rechargeable),
up to 160 hours
(alkaline batteries)

Protection class

IP 54, dust and
splash-proof

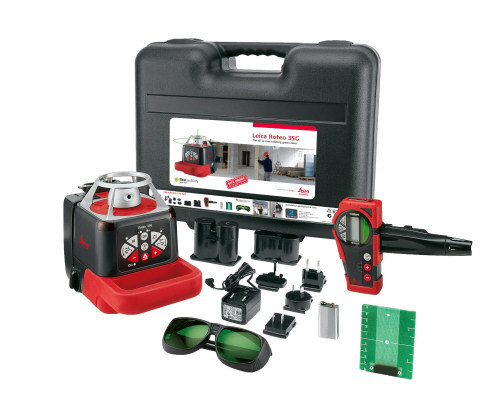

your shipment will include:
 1 no. Leica Roteo 35G rotating laser
 1 no. Motorised wall mount
 1 no. RC350G remote control / Laser Detector
 1 no. Battery (AA) for the remote control
 1 no. Battery holder for alkaline batteries
 1 no. Batteries for laser
 1 no. Green target plate
 1 no. Green laser glasses
 1 no. 24 Month Warranty

OUR PRICE (ex. vat):  £849.00
(inc. vat @20%) £1,018.80
Download product information
