Sitemaster Building v5.0 is the mobile solution for Professional Building Surveys and Fast CAD Drawings carried out On Site in Real Time. Draw fast and accurate walls (as single or double line), windows, doors and symbols rectangular and circular columns, recesses, chimneys, ducts, room areas, volumes, perimeters and much more.
Taking advantage of the Bluetooth functionality in the latest range of laser tapes from Leica such as the DISTO D3a BT or DISTO D8 you can now produce accurate floorplans as you measure.
Point ~ Shoot ~ Drawn = Instant Floor Plans
SiteMaster Building – ideal for daily use is now being used extensively for Commercial Energy Assessment Floor Plans and Data Collection and by many other users who need to capture critical data in a fast and professional way.
For professional building surveys
The extensive features of SiteMaster Building are especially interesting for users that need to create and deliver professional Fast CAD drawings.
The layer management supports the combination of several floor plans in one single file. Heights of rooms, openings and symbols can be recorded and exported. Lasered distances are recorded in the background and saved on an extra layer for proofing purposes.

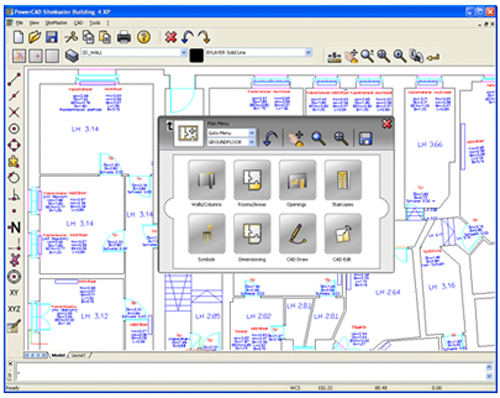

Draw fast and accurate walls (as single or double line), windows, doors and symbols. You can draw rectangular and circular columns, Recesses, chimneys and niches/ducts. SiteMaster Building offers you more than 250 CAD and numerous editing commands. The program features associative dimensioning and room area calculation.
The Camera function allows you to insert ic on-referenced inspection photos and images. SiteMaster Building contains an Image function for direct insertion and scaling of photos and image underlays with support for file formats as BMP, JPG, PNG, TIFF and RLC digital photos and images.
VoiceNotes that can easily been inserted eliminate time consuming text markup by providing record and playback of high-compressed audio notes and instructions directly inside your drawings.
AutoCAD-compatible drawing symbols / blocks can be used. The Visual Symbol Manager lets you insert symbols ? as-measured, referenced or free in the drawing. You can export Excel-compatible .csv files with room/area lists and room schedule reports/symbol lists. The Check Distance function lets you compare »as-built« distances to plan distances and record this comparison.
Surveys are conducted using a hand-held Laser Measure Leica Disto D3aBT, Leica Disto D8
This approach, which produces the CAD drawing during the survey process, allows us to establish and accurately check all building dimensions while on site. Significant improvements in survey quality are gained using this equipment when compared with traditional survey methods.
Check measurements are taken to ensure accuracy Gone are the days where two men would hold a sagging tape measure from one end of the room to the other, that old method is history! There are NO more return visits to site due to blunt pencils and inaccurate paper documentation, NO guesswork, NO wrong data documentation NO sagging tape measures.
