SiteMaster Elevation is an independent add-on for SiteMaster. You can benefit from photogrammetric procedures by determining detailed measurements from freehand digital photographs or scanned images.

SiteMaster Elevation requires only one rectangle with two known side lengths for calibrating an image plan. The software lets you measure and draw a building in 2D with added height information on floors, openings etc.

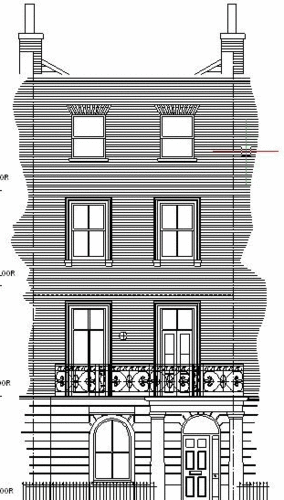

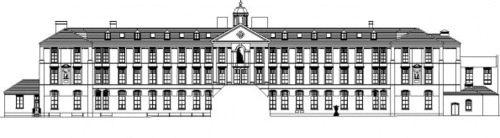

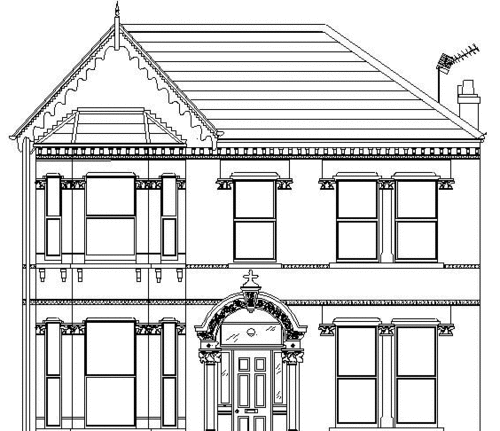

It saves the exact measurement results by redrawing the image with points, lines, rectangles, polylines, arcs and circles. SiteMaster Elevation transfers drawing elements with state-of-the-art technology to your CAD system, e.g. or SiteMaster Building. After completing your measurements you can generate a report list of all measurements and areas. The results can be exported in excel lists.

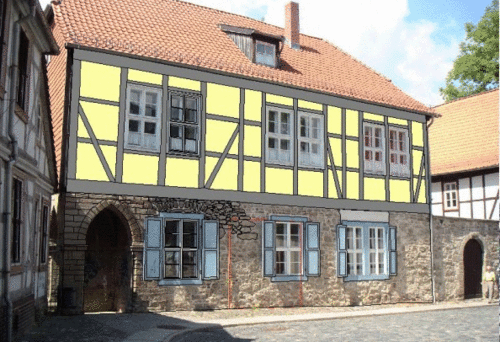

Processing digital photographs of the building's facade in SiteMaster Elevation allows you to enhance your project into a full 3D plan with precise exterior views. You can exchange drawing files between SiteMaster Elevation, SiteMaster (and other solutions) using the .FLX (PowerCAD) and .DXF file format.


Steps:
  Lens Correct

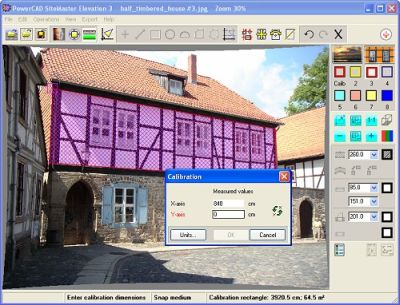

  Calibrate

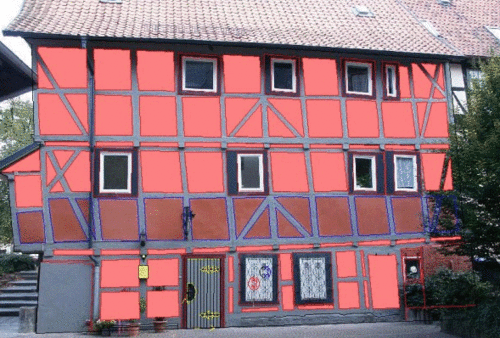

  Trace
  Export to your CAD programme to finish off


Note! Precision is approximately 5mm over 8 metres when using a 6megapixal camera. A high resolution and large image and large calibration plane will give max precision and ability to zoom/pick points.
