The Sprinter 150 covers almost all construction applications. It automatically determines your delta height. Simply enter your site benchmark / OS level, Place the staff on this point and take a measurment with the Sprinter. Once done the sprinter is calibrated and all further measurement are shown in relation to the benchmark avoiding the calculations needed to work out height diffence and the common errors that arise from this.
Just aim, focus and measure by pressing one button, the data is displayed almost instantly. There will be no more misreading. Error reducing functions, such as the tilt sensor prevent the system from measuring if the user operates outside the compensator range. You always measure and read error-free.
Aim, Push the Button, Read
|
|
Aim & Focus
With its high-accuracy opticalelements you simply aim and focus the staff as an optical level. |
 |
Push the Button
With its easy one-button operation, Leica Sprinter does not need any intensive training. Simply push the red button to take the measurement. That‘s all you need to do.
|
 |
Read

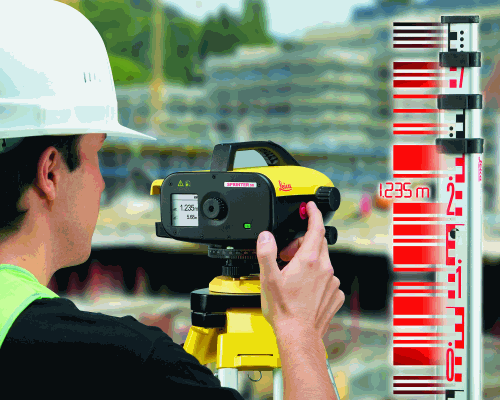

Optical reading is no longer needed. The bar code on the staff determines height and distance which is displayed on a highly visible LCD display.
|
Any levelling - at any place - for anyone
Use the Leica Sprinter 150 as a multifunctional levelling tool:
Elevation control, height control
|
 |
 |
Platform/concrete casting stakeout, rectangular area stakeout, distance measuring
|
| As-built elevation checking, grade checking, area leveling, volume determination of earth/dirt moving operations |
 |
Onboard Software:
 |

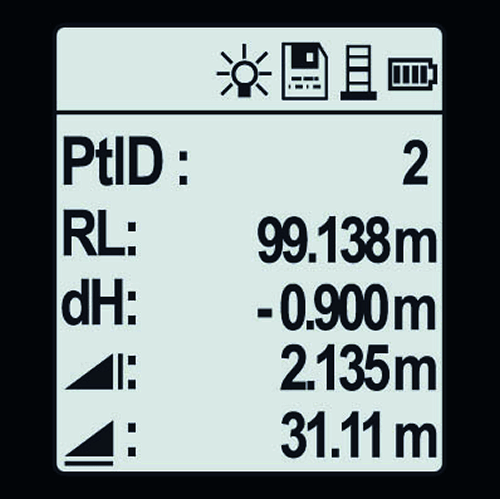

Delta Height
This function calculates the height difference between points. Enter your benchmark, measure your backsight and then your various targets (foresights). The delta height is always calculated and displayed.
|
| Instrument |
Leica
Sprinter 50 |
Leica
Sprinter 150 |
Leica
Sprinter 150M |
Leica
Printer 250M |
| Accuracy* per km double-run |
2.0 mm |
1.5 mm |
1.5 mm |
1.0 mm/0.7mm* |
|
|
|
|
|
| Height and distance |
 |
|
|
|
| |
|
|
|
|
| Delta height |
|
|
|
|
| |
|
|
|
|
| Tracking |
|
|
|
|
| |
|
|
|
|
| Multilingual function |
|
|
|
|
| |
|
|
|
|
| Line levelling |
|
|
|
|
| |
|
|
|
|
| Cut & fill and monitoring |
|
|
|
|
| |
|
|
|
|
| Data storage |
|
|
|
|
| |
|
|
|
|
| USB interface |
|
|
|
|
* With Sprinter alumiium barcode staff, 0.7 mm can be achieved with Sprinter fibre glass barcode staff (2 or 3 m, 1 section)
Benefits:
 Increase Productivity
Minimize Human Errors
Operate in Low Light Conditions
your shipment will include:
1 no. SPRINTER 150, 1.5mm, electronic level
1 no. Dual face tele.staff, 4m 4sect, UK
1 no. CTP103, Aluminium tripod, shoulder strap
1 no. User Manual Sprinter 150 V1.2,engl.
1 no: 2 Year Warranty
1 no. Comprehensive Leica Dealer Technical Advice & Support Package
|
Download product information
