Product News


Flir Infrared Camera's




Flir Systems the market leader in infrared and thermal imaging camera's have just appointed Merlin Lazer as one of its UK main distributors.

We will be stocking the full range of camera's and further information will be added to our website in the near future.

If you would like further information in the meantime please do not hesitate to contact us.

further information












Leica Sprinter 150M Digital Level - Plus FREE Barcode Staff & Tripod

Sprinter 150M Digital Level - Plus FREE Barcode Staff & Tripod



The Sprinter 150M is the perfect tools for advanced construction levelling tasks. Store up to 1’000 measurements, download and transfer them for further calculations to Microsoft Excel® to a PC via USB. The delta height calculation and programs line levelling, cut & fill and monitoring facilitates your levelling jobs significantly.




Just aim, focus and measure by pressing one button, the data is displayed almost instantly. There will be no more misreading. Error reducing functions, such as the tilt sensor prevent the system from measuring if the user operates outside the compensator range. You always measure and read error-free.


Aim, Push the Button, Read



Aim & Focus
With its high-accuracy opticalelements you simply aim and focus the staff as an optical level.


Push the Button
With its easy one-button operation, Leica Sprinter does not need any intensive training. Simply push the red button to take the measurement. That‘s all you need to do.

Read
Optical reading is no longer needed. The bar code on the staff determines height and distance which is displayed on a highly visible LCD display.

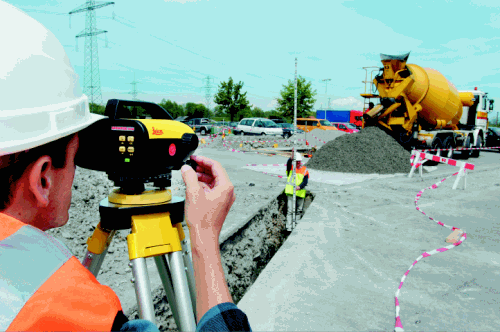

Any levelling - at any place - for anyone
Use the Leica Sprinter 150 as a multifunctional levelling tool:

Elevation control, height control


Platform/concrete casting stakeout, rectangular area stakeout, distance measuring

As-built elevation checking, grade checking, area leveling, volume determination of earth/dirt moving operations





Onboard Software:

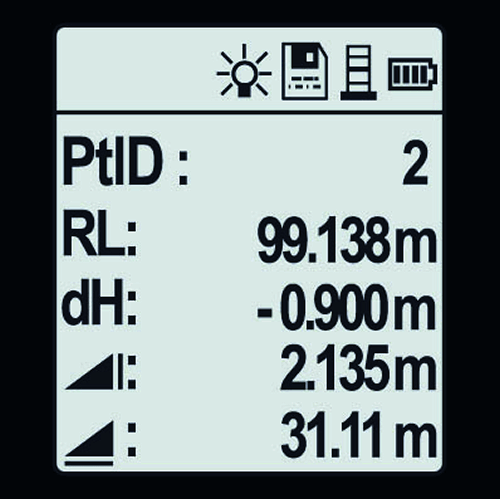

Delta Height
This function calculates the height difference between points. Enter your benchmark, measure your backsight and then your various targets (foresights). The delta height is always calculated and displayed.

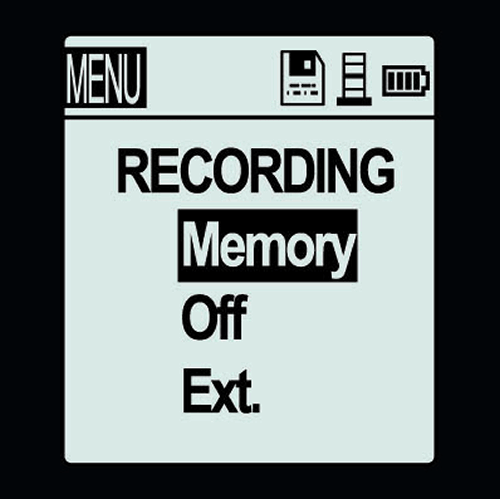

Memory & Data Transfer
With Leica Sprinter 150M, data can be downloaded to your personal computer via USB Interface. The Sprinter
DataLoader enables a smooth data transfer to Microsoft Excel®. Your measurements can also be transferred to an external data collector via RS232 interface.

Line Levelling
Whether you only have back and foresights or even intermediate sights, choose the line levelling job you need. Enter your starting benchmark, measure your backsights, intermediate sights and foresights until you have reached your final point.function calculates the height difference between points. Enter your benchmark, measure your backsight and then your various targets (foresights). The delta height is always calculated and displayed.

Cut & Fill
TThis onboard application indicates the cut & fill results based on a reference level. Enter your required reference level and benchmark. Take the backsight and start measuring. The program displays now the cut & fill results, height differences, compared to your reference level.

Instrument Leica
Sprinter 50
Leica
Sprinter 150
Leica
Sprinter 150M
Leica
Printer 250M
Accuracy* per km double-run 2.0 mm 1.5 mm 1.5 mm  1.0 mm/0.7mm*

Height and distance

Delta height

Tracking

Multilingual function

Line levelling

Cut & fill and monitoring

Data storage

USB interface

* With Sprinter alumiium barcode staff, 0.7 mm can be achieved with Sprinter fibre glass barcode staff (2 or 3 m, 1 section)

Frequently Asked Questions

Benefits:

  Increase Productivity
  Minimize Human Errors
  Operate in Low Light Conditions

your shipment will include:
  1 no. SPRINTER 150M, 1.5mm, electronic level
  1 no. Dual face tele.staff, 4m 4sect, UK
  1 no. CTP103, Aluminium tripod, shoulder strap
  1 no. USB Data Transfer Cable & Software
  1 no. User Manual Sprinter 150 V1.2,engl.
  1 no: 2 Year Warranty
  1 no. Comprehensive Leica Dealer Technical Advice & Support Package

RRP:  £1,004.44
OUR PRICE (ex. vat):  £752.95
(inc. vat @20%) £903.54
Download product information
View all products by Leica
Additional Product Images
