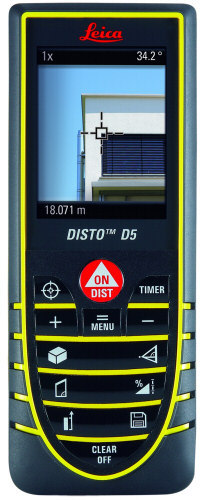

Leica Disto D5 Laser Tape

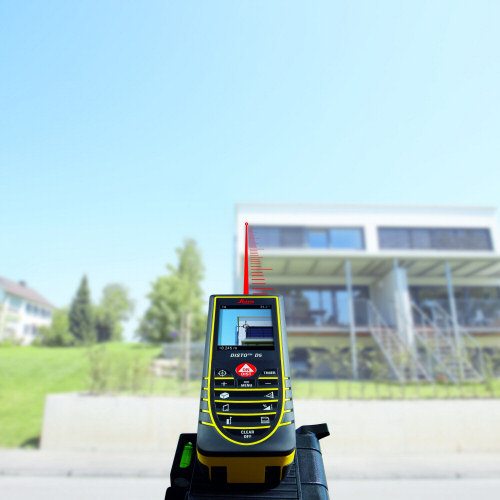

New Digital Colour Viewfinder with 4x Zoom The digital Viewfinderfinder with 4x zoom  and colour screen allows you to point quickly and easily at far-off objects even in bright sunlight.

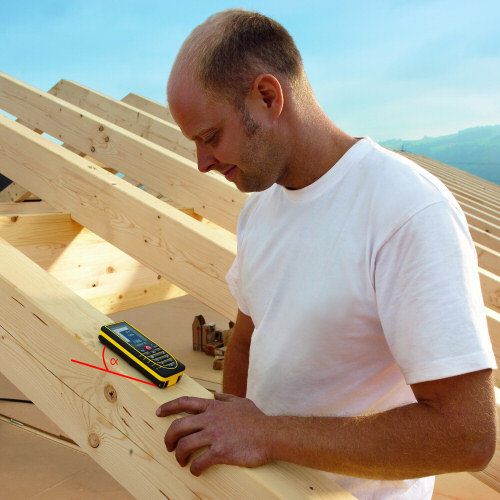

Tilt Measurement Measure angles, pitches & inclinations with the Disto D5's built in Tilt Senson.

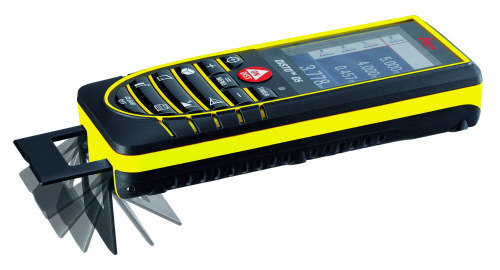

Multifunctional Endpiece Measure from edges or corners with the auto detect endpiece.

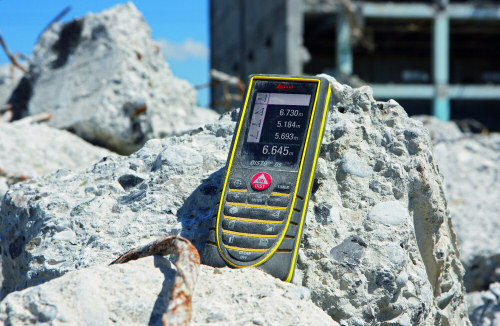

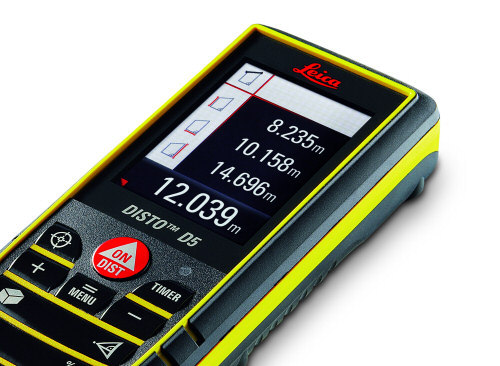

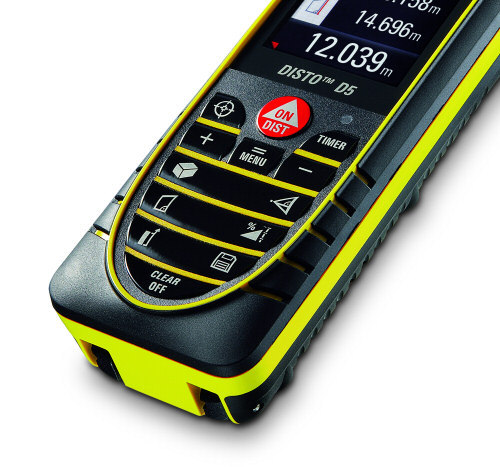

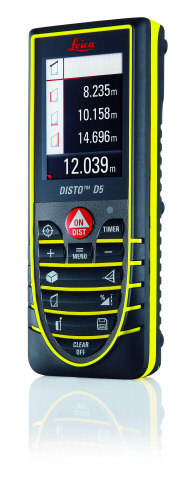

The Leica DISTO™ D5 is designed with many functions and features to make measuring easier, particularly when you are working outdoors. Its large, high resolution colour display presents the measurement results and additional information in an easy to read format. A wealth of functions helps you quickly and precisely to resolve almost any measurement situation. A robust housing gives optimum protection against splash water and dust.

The device has the following special features:

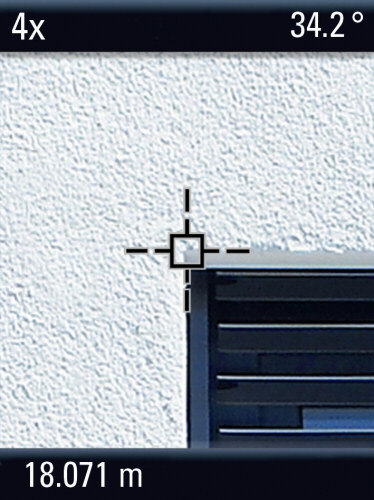

Digital pointfinder

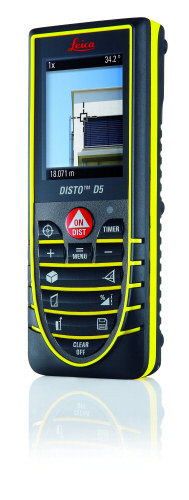

The integral digital pointfinder with 4x zoom and 2.4“ colour display makes finding the target at long distances much easier. Its high resolution capability provides a sharp, crystal-clear image, which allows measurements to be taken even in glaring sunshine.



Tilt sensor

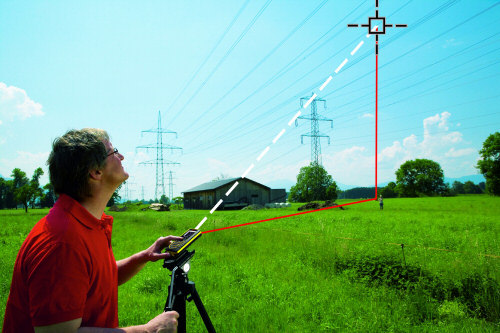

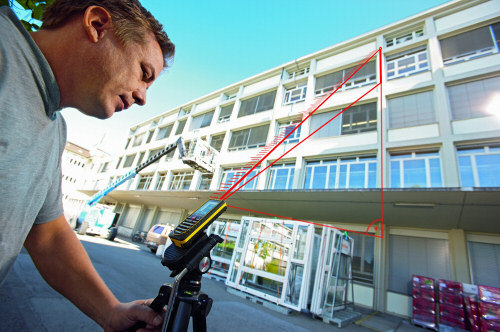

Thanks to the in-built tilt sensor, you can quickly and simply measure tilts up to ± 45°. In addition the tilt sensor allows you to take absolutely horizontal measurements or to measure over the top of obstructions (horizontal distance). The measurement results achieved in this way are completely reliable.



Power Range Technology™
The integrated Power Range Technology™ allows you to measure large distances very simply. Measure up to 100 m without a target plate, and even up to 200 m using a target plate, without having to take a single step.

Spot-on measurement
The laser makes it possible! The laser dot is clearly visible, therefore you always know exactly where you are measuring, which is especially useful in difficult to access places. So you can take absolutely precise measurements, even over long distances.

Details displayed
Additional information about the measurements, e.g. room dimensions or angles, is available at the touch of a button.

	Interior						Exterior
Functions	DXT	D2	D3a			D3a BT	D5			D8
Smart Horizontal Mode™			•			•
Min / max measurement	•	•	•			•	•			•
Continuous measurement	•	•	•			•	•			•
Addition / subtraction	•	•	•			•	•			•
Area / volume measurements	•	•	•			•	•			•
Pythagoras functions	•	•	•			•	•			•
Room dimensions	•		•			•	•			•
Horizontal distance							•			•
Trapezium measurements							•			•
Indirect measurements using tilt sensor										•
Line Levelling										•
Technical Data	DXT	D2	D3a			D3a BT	D5			D8
Typical measuring accuracy	± 1.5 mm	± 1.5 mm	± 1.0 mm			± 1.0 mm	± 1.0 mm			± 1.0 mm
Range	0.05 – 70 m	0.05 – 60 m	0.05 – 100 m			0.05 – 100 m	0.05 –200 m			0.05 –200 m
Measuring units	m, ft, in						m, ft, in, yd
Power Range Technology™			•			•	•			•
Distance in m Ø of the laser dot in mm	10, 50, 100 m 6, 30, 60 mm						10, 50, 100 m 6, 30, 60 mm
Tilt sensor Measuring range Accuracy to the laser beam Accuracy to the housing			± 45° ± 0.3° ± 0.3°				± 45° ± 0.3° ± 0.3°			360° ± 0.1° ± 0.1°
Units in the tilt sensor			0.0°, 0.0%				0.0°, 0.00% mm/m, in/ft
4-fold digital viewfinder							•			•
Store constant values							1			1
Memory recall	10	10	20			20	20			30
Time delay release (timer)		•	•			•	•			•
Display illumination	•	•	•			•	•			•
Free software						•				•
Data interface						Bluetooth (Class 2)				Bluetooth (Class 2)
Measurements per set of batteries	up to 5,000	up to 5,000	up to 5,000			up to 5,000	up to 5,000			up to 5,000
Multifunctional end-piece	automatic	manual	automatic			automatic	automatic			automatic
Tripod thread			•			•	•			•
Batteries	AAA 2×1.5						AA 2×1.5
Protection class	IP 65	IP 54					IP 54
Dimensions	122×55 ×28 mm	111× 42 × 23 mm	127×49×27.3 mm				143.5×55×30 mm
Weigh with batteries	159g	90g	149g			150g	195g			205g

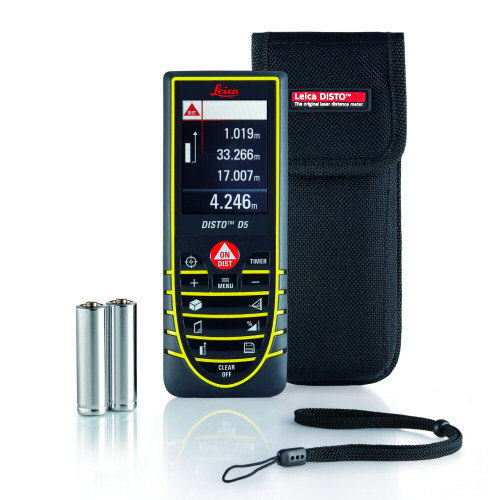

your shipment will include:   1 no. Leica DISTO D5   1 no. Protective Holster   1 no. Wrist Strap   2 no. AA Batteries   1 no. Instruction Sheet   1 no. 36 Month Warranty   1 no. 30 Day Money Back Guarantee   1 no. Comprehensive Leica Dealer Technical Advice & Support    1 no: FREE Next Working Day Delivery
