Leica LINO L2 Crosshair Laser Level

LINO L2 Crosshair Laser Level

Modern, eronomic housing:
Dust-proof and splash-proof to IP54.
Large glass lens:
With optimal emergence angle. Ensures remarkable visibility and extent of the laser lines.

Very easy to use:
With only two buttons the Leica LINO™ L2 is intuitive to operate.

With your Leica LINO™ L2 everything will be straight

The quality of the optics is crucial for the remarkable visibility and high accuracy of the lines projected. This quality and Power Range Technology™ are key features of the Leica LINO L2.

No more time-consuming drawing lines on the wall!

The Leica LINO™ L2 automatically compensates for minor angular misalignments over a range of ± 4°. Whether horizontal, vertical or crossed – the red lines are perfectly visible everywhere on the wall.

Pulse function with power-saving mode:
Essential for applications outdoors with detector (accessory) and projections over longer distances.

Modern, ergonomic housing:
Dust-proof and splash-proof to IP54.

Lock function:
Lock for projecting at an angle and transport protection.

Very easy to use:
With only two buttons the Leica LINO™ L2 is intuitive to operate.

Large glass lens:
With optimal emergence angle. Ensures remarkable visibility and extent of the laser lines.

lock laser at any angle with pivot mount

easy setup - no more need for chalk lines

check horizontal, vertical and square with one tool

fast set up - transfer points around the room

perfect alignment tool no more time consuming drawing lines on the wall
Easy & intuitive to operate pulse function - for use with laser detector
revolutionary pocket size combined with convenient shape dust-proof & splash proof to IP54
lock function  - switch of self levelling function self levelling
large lens for optimal emergence angle accurate to ± 1mm@5m
foil keypad

easy to use - manual not required

technical data
range measurements up to 15m (dependent on light) 30m with detector oper. temp -10ºC to 40ºC
levelling accuracy ±1.0mm @ 5m protection (IP54) splash & dust proff
horizontal accuracy ±1.0mm @ 5m battery type AA, 3 x 1.5V
vertical accuracy ±0.75mm @ 3m line length @ 5m size (HxDxW) 96x91x54
laser type 635nm , laser class II weight 320g

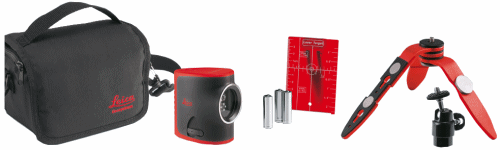

protective pouch


target plate
& batteries

multi-functional adapter / tripod & ball adapter

your shipment will include:
 1 no. Leica DISTO LINO L2
 1 no. Protective Pouch
 1 no. Target Plate
 1 no. Magnetic Multifunction Adapter / Mini Tripod
 1 no. Ball adapter - for Projection At Any Angle
 3 no. AA Batteries
 1 no. Instruction Sheet
 1 no. 24 Month Warranty

OUR PRICE (ex. vat):  £149.00
(inc. vat @20%) £178.80
Free Next Day Delivery (UK)
Download product information
View all products by Leica
Additional Product Images
Associated Products
LINO L2 Laser Detector
This compact laser detector is for use with the Leica LINO L2 laser level. When the lighting conditions no longer enable you to see the laser line this detector will give an acoustic & visual indication of the line upto 30m
Stock Code: 740201
OUR PRICE (ex. vat): £69.00
LINO Wall & Ceiling Adaptor
The Leica Lino wall bracket is ideal for mounting your Leica Lino on walls & ceilings. With its adjustable height it is ideal for suspended ceilings, dry lining and many other applications.
Stock Code: 803-758839
OUR PRICE (ex. vat): £44.95
RVL 100 Laser Receiver & Bracket
The Leica RVL 100 Laser Receiver has been specifically designed to work with line lasers and increases the working range especially when working outdoors and in bright conditions.
Stock Code: 803-784962
OUR PRICE (ex. vat): £89.00
CLR 290 Ceiling Pole
Use with Leica ceiling pole with the Leica Lino line laser or rotating laser, for accurate levelling. Simply fix into place upto a height of 290cm and then adjust the clamp to set the height of your laser beam.
Stock Code: 803-761762
OUR PRICE (ex. vat): £59.00
TRI70 Tripod With Crank Drive
Ideal for adjusting the height of the laser beam when used in conjunction with the Leica Lino range of line lasers.
Stock Code: 801-794963
OUR PRICE (ex. vat): £39.00
