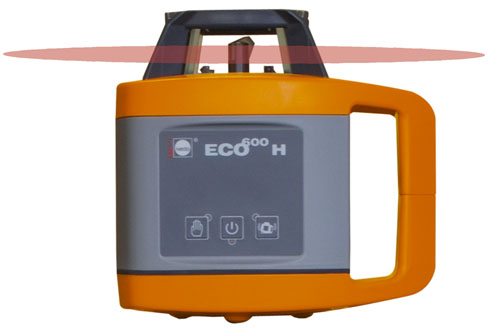

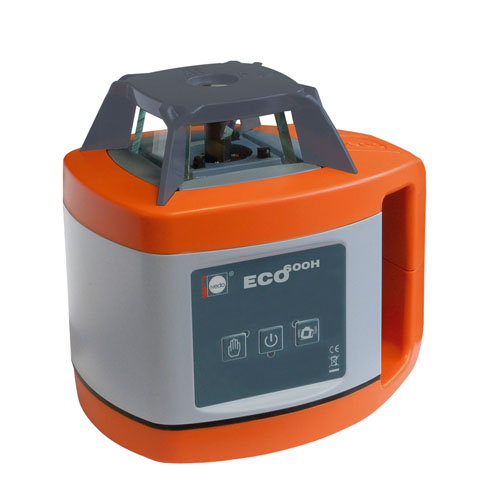

ECO600 H is a robust, fully automatic rotating laser for horizontal applications.

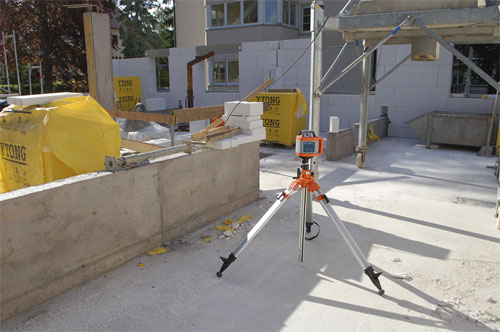

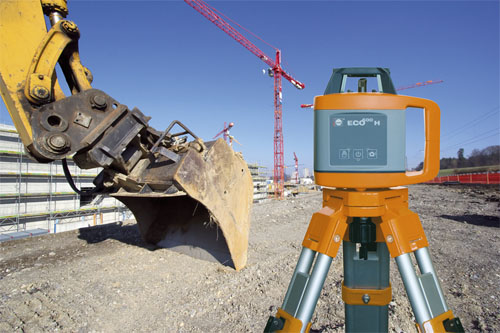

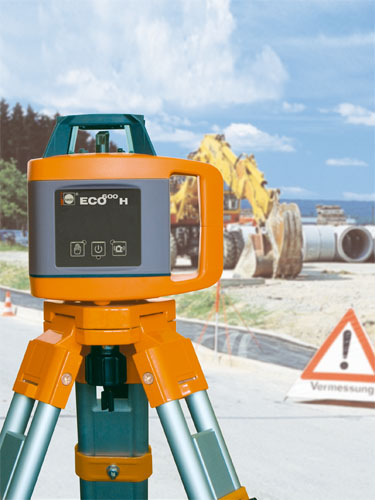

Perfect for all levelling jobs on the construction site, such as casting concrete floors or foundations, for excavating and masonry jobs and for landscaping.
ECO600 H features an excellent range of functions at a very attractive price.
 Fully automatic horizontal laser for exterior applications
Self-levelling range ± 5°, with motor-powered levelling
High-Power laser diode (laser class 3R) for good laser beam visibility
Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
Downward plumb beam
Sturdy housing dust & Splash proof to IP 54
Glass rotor protection
High-Power NiMH rechargeable batteries for long operation
 |
Features laser receiver ACCEPTOR1:
Large LCD display on front and back
Switchable illumination
Display of remaining battery power
Two accuracy modes
Rod clamp for laser receiver |
 |
|
|
Technical data
|
Nedo ECO 600 H Laser Level
|
| Range |
up to 400m with laser receiver
|
| Self leveling accuracy |
± 3 mm at 30 m (±1/8" at 100 ft)
|
Automatic
self levelling laser |
horizontal
|
|
Self levelling range
|
± 5° motor-powered, with automatic
level control
|
|
Rotation speed
|
600 rpm
|
| Scanning angle |
n/a
|
| Wall mount bracket |
n/a
|
Dimensions laser
(H x W x D) |
150x200x190 mm
|
| Weight with batteries |
2.1 kg
|
| Battery types |
4.8V 3800 mAh rechargeable battery pack (NiMH)
|
| Battery life |
aprox 30h
|
| Protection class |
IP 54
|
| Laser Class |
< 5 mW, laser class 3R, 635 nm |
| Operating temperature |
-20°C to + 50°C |
|
Technical data
|
Nedo Acceptor 1 Laser Receiver / Detector
|
| Sensitivity Coarse/Fine |
Switchable ± 3.0 mm / ±
|
| Power Supply |
9V battery
|
| Lenth of detector field |
40mm
|
|
Display
|
LCD display on front and back / Illuminated
|
|
Signal
|
acoustic, 3 levels
|
| Protection Class |
IP 65 (complete protection for dirt & jet water)
|
| Clamp / bracket |
included |

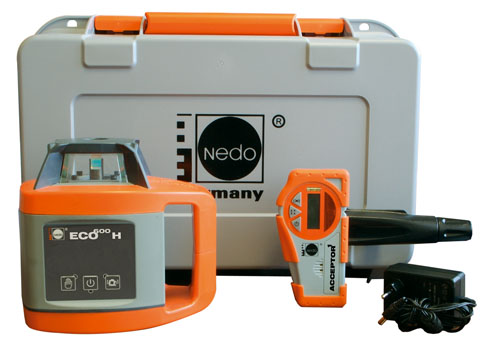

your shipment will include:
1 no. ECO600 H rotating laser
1 no. Laser receiver ACCEPTOR1
1 no. Rechargeable batteries and charger
1 no. Transport case
1 no. 24 Month Warranty |
|
 |
|
