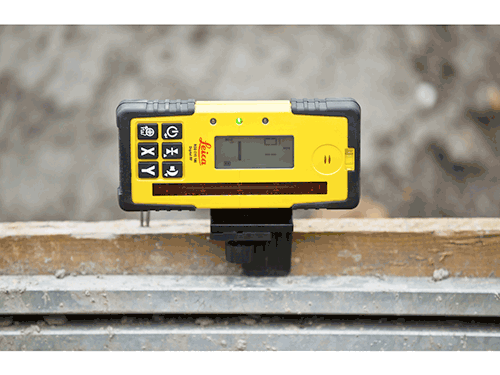

Leica RodEye 180 Digital Laser Detector

RodEye 180 Digital Laser Detector

The Rodeye 180 is the most advanced laser detector on the market.

Featuring RF communication with compatible lasers enabling auto calibration, smart targeting and auto align.

The unit also gives a digital readout of height and has industry beating 12cm detection window.

 Product Features

Top of the range receiver with integrated radio remote functionality, digital readout, half millimeter accuracy and strobe rejection.

Smart Targeting
fast set-up, let the receiver align the laser plane for you at the touch of a button – horizontal, vertical or dual axis>.

Intelligence inside with Laserman:
monitor and correct the laser plane in real-time using Smart Lock functionality.

Digital Read-Out
if the detector is not in line with the laser plane then the offset distance is shown in mm on the screen.

Large receiving Window:
up to 3 times larger than the market standard make for easier beam detection.

Capture Readings:
remember your digital readings for fast and reliable height checks.

  Laserman Rod-Eye Laser Detectors

Technical Data Leica Rodeye Basic Leica Rodeye 140

Leica Rodeye 160

Leica Rodeye 180

Working Diameter

500m 1,350m (4430 ft) 1,350m (4430 ft) 1,350m (4430 ft)
Extended Detection Window 36mm 120mm / 5 in 120mm / 5 in 120mm / 5 in
Numeric Readout Height - - 90mm / 3.5 in 90mm / 3.5 in
Detectable Spectrum 600nm to 800nm 600nm to 800nm 600nm to 800nm 600nm to 800nm
Detection Accuracies
Ultra Fine - - ±0.5mm / ±0.02 in ±0.5mm / ±0.02 in
Super Fine  1.0mm / ±0.04 in ±1.0mm / ±0.04 in ±1.0mm / ±0.04 in ±1.0mm / ±0.04 in
Fine - ±2.0mm / ±0.08 in ±2.0mm / ±0.08 in ±2.0mm / ±0.08 in
Medium ±3.0mm / ±0.12 in ±3.0mm / ±0.12 in ±3.0mm / ±0.12 in ±3.0mm / ±0.12 in
Coarse - - ±5.0mm / ±0.20 in ±5.0mm / ±0.20 in
Auto Calibration - - - Yes
RF Communication with Laser - - - Yes
Smart Target - - - Yes
Capture Measurement - - Yes Yes
Units Of Measurement - - mm,cm,in,ft mm,cm,in,ft
Anti Stobe No Yes Yes Yes
Beam Finding No Yes Yes Yes
Battery Life 50+ Hours 60+ Hours 60+ Hours 60+ Hours
IP Rating IP54 IP67 IP67 IP67
Warranty 1 Year 3 Years 3 Years 3 Years
Other Information
Manufacturer Leica
Leica Geosystems Leica Geosystems Leica
Manufacturer Part No  Leica 769811 Leica 789923 Leica 789924 Leica 789926
Our Stock Code 810-769811 810-789923 810-789924 810-789926


your shipment will include:

1 no. Leica RodEye 180 Laser Detector
1 no. RodEye Detector Bracket
1 no. Battery
1 no. FREE Comprehensive Leica Dealer Technical Support
1 no. Free 3 Year Warranty



OUR PRICE (ex. vat):  £295.00
(inc. vat @20%) £354.00
Free Next Day Delivery (UK)
View all products by Leica
Additional Product Images
Alternative Product Models
Rod Eye Basic Laser Receiver With Bracket
The Rod Eye Basic is a great receiver for general construction applications. Offering two accuracy settings, high / low audio output and a 150 m range, the Rod Eye Basic is a quality receiver that is ready to work for you.
Stock Code: 810-769811
RRP: £149.00
OUR PRICE (ex. vat): £115.00
Rod Eye 140 Classic Laser Receiver
The Rodeye 140 laser detector features the new 12cm detection window, more than twice that of the industry average allowing for easier location and tracking of the laser beam. This model also features both audible and LED indication and is IP67 rated.
Stock Code: 810-789923
OUR PRICE (ex. vat): £165.00
RodEye 160 Digital Laser Detector
The Rodeye 160 laser detector features a digital height readout giving you an immediate indication of how far you are from the laser beam. This unit also includes the new industry beating 12cm detection window for easier location of the laser beam.
Stock Code: 810-789924
OUR PRICE (ex. vat): £230.00
