Flir Systems the market leader in infrared and thermal imaging camera's have just appointed Merlin Lazer as one of its UK main distributors.

We will be stocking the full range of camera's and further information will be added to our website in the near future.

If you would like further information in the meantime please do not hesitate to contact us.

further information

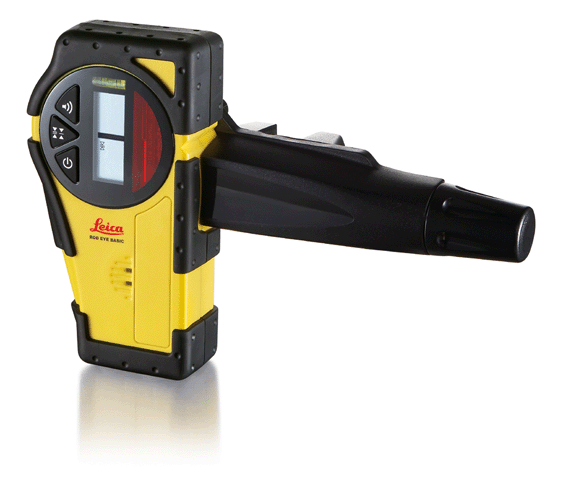

Leica Rod Eye Basic Laser Receiver With Bracket

For those looking for a robust high quality detector at a low price, The Leica Rod Eye Basic is the perfect choice.

Offering two accuracy settings, high/low audio output and a 500m range, the Rod Eye Basic is a quality receiver that is ready to work for you.

Product Features

This receiver offers everything you need for your standard jobsite levelling tasks. Simply turn it on and you are ready to go.

LCD Indication:
two clear displays on the front and back of the receiver make for simple levelling.

Audio Indication:
two settings, high for noisy outdoor jobs and low for indoor applications.

Automatic Shut-Off:
after ten minutes to conserve battery life if no laser detected.

Protective Overmold:
protects the receiver from drops in tough jobsite conditions.

Level Bubble:
on the receiver ensures good alignment and improves your reading accuracy.

	Laserman Rod-Eye Laser Detectors

Technical Data	Leica Rodeye Basic	Leica Rodeye 140	Leica Rodeye 160	Leica Rodeye 180
Working Diameter	500m	1,350m (4430 ft)	1,350m (4430 ft)	1,350m (4430 ft)
Extended Detection Window	36mm	120mm / 5 in	120mm / 5 in	120mm / 5 in
Numeric Readout Height	-	-	90mm / 3.5 in	90mm / 3.5 in
Detectable Spectrum	600nm to 800nm	600nm to 800nm	600nm to 800nm	600nm to 800nm
Detection Accuracies
Ultra Fine	-	-	±0.5mm / ±0.02 in	±0.5mm / ±0.02 in
Super Fine	1.0mm / ±0.04 in	±1.0mm / ±0.04 in	±1.0mm / ±0.04 in	±1.0mm / ±0.04 in
Fine	-	±2.0mm / ±0.08 in	±2.0mm / ±0.08 in	±2.0mm / ±0.08 in
Medium	±3.0mm / ±0.12 in	±3.0mm / ±0.12 in	±3.0mm / ±0.12 in	±3.0mm / ±0.12 in
Coarse	-	-	±5.0mm / ±0.20 in	±5.0mm / ±0.20 in
Features
Auto Calibration	-	-	-	Yes
RF Communication with Laser	-	-	-	Yes
Smart Target	-	-	-	Yes
Capture Measurement	-	-	Yes	Yes
Units Of Measurement	-	-	mm,cm,in,ft	mm,cm,in,ft
Anti Stobe	No	Yes	Yes	Yes
Beam Finding	No	Yes	Yes	Yes
Battery Life	50+ Hours	60+ Hours	60+ Hours	60+ Hours
IP Rating	IP54	IP67	IP67	IP67
Warranty	1 Year	3 Years	3 Years	3 Years
Other Information
Manufacturer	Leica Geosystems	Leica Geosystems	Leica Geosystems	Leica Geosystems
Manufacturer Part No	Leica 769811	Leica 789923	Leica 789924	Leica 789926
Our Stock Code	810-769811	810-789923	810-789924	810-789926

your shipment will include:

1 no. Leica RodEye Basic Laser Detector
1 no. RodEye Detector Bracket
1 no. Battery
1 no. FREE Comprehensive Leica Dealer Technical Support
1 no. Free 1 Year Warranty

RRP:	£149.00
OUR PRICE (ex. vat):	£115.00
(inc. vat @20%):	£138.00

Download product information

View all products by Leica

Additional Product Images

Alternative Product Models

Rod Eye 140 Classic Laser Receiver

The Rodeye 140 laser detector features the new 12cm detection window, more than twice that of the industry average allowing for easier location and tracking of the laser beam. This model also features both audible and LED indication and is IP67 rated.

Stock Code: 810-789923

OUR PRICE (ex. vat): £165.00

RodEye 160 Digital Laser Detector

The Rodeye 160 laser detector features a digital height readout giving you an immediate indication of how far you are from the laser beam. This unit also includes the new industry beating 12cm detection window for easier location of the laser beam.

Stock Code: 810-789924

OUR PRICE (ex. vat): £230.00

RodEye 180 Digital Laser Detector

The Rodeye 180 is the most advanced laser detector on the market. Featuring RF communication with compatible lasers enabling auto calibration, smart targeting and auto align. The unit also gives a digital readout of height and has 12cm detection window.

Stock Code: 810-789926

OUR PRICE (ex. vat): £295.00
