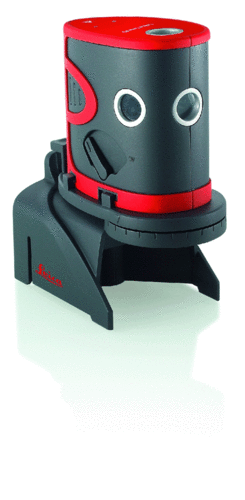

Leica Lino P5 – Right to the point!

Practical and simple to operate! The Leica Lino P5 dot laser transfers all the dots you need, quickly and accurately. It is an efficient solution for professional plumbing and aligning tasks.

Featured with

Modern, ergonomic housing
Self-levelling
Power Range Technology™
Practical multifunction adapter
Very easy to use

		Professional plumbing The laser beam is projected above and below the instrument, allowing you to transfer reference dots quickly and efficiently.

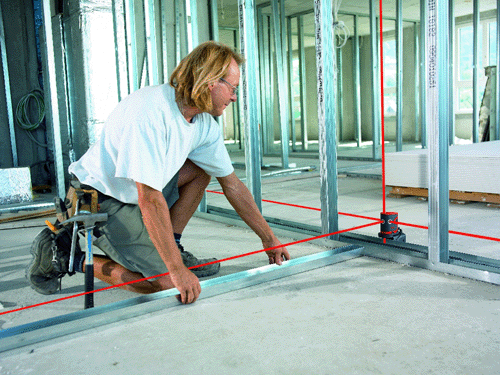

		Setting out right angles The Leica Lino P5 has five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise  and efficient.
		Aligning In addition to the plumb beams, the Leica Lino P5 projects three dots at exactly the same height. Aligning windows, partition walls and other building elements becomes quick and easy.

	LINO Range
Functions	L2+	P3	P5	L2P5
Horizontal levelling	•	•	•	•
Plumbing up and down		•	•	•
Vertical aligning	•			•
Vertical & horizontal aligning	•			•
Setting out right angles			•	•
Aligning at an angle	•			•
Technical Data	L2+	P3	P5	L2P5
Typical measuring accuracy @ 5m	± 1.0 mm	± 1.5 mm	± 1.5 mm	± 1.5 mm
Range (* depending on lighting)	15m*	15m*	15m*	15m*
Range with detector	30m+	n/a	n/a	30m+
Self levelling range	±5°	±5°	±5°	±5°
Number of laser points	0	3	5	4
Number of laser lines	2	0	0	2
Beam direction	vertical, horizontal	up, down, forward	up, down, forward, left, right	vertical, horizontal, up, down, left, right
Batteries	3 x 1.5V (AA)	3 x 1.5V (AA)	3 x 1.5V (AA)	4 x 1.5V (AA)
Protection Class	IP54
Operation temperature	- 10°C to 40°C
Storage temperature	- 25°C to 70°C
Tripod thread	1/4"
Weight with batteries	370g	310g	321g	370g
Dimensions	115 x 130 x 75 mm	99 x 108 x 59 mm	99 x 108 x 59 mm	115 x 130 x 75 mm
